| 分辨率 | 產品圖 | 型 號 | 外形尺寸 WxHxT (mm) |
視域尺寸 WxH (mm) |
字符尺寸 WxH (mm) |
點尺寸 WxH (mm) |
背光類型 | 接口模式 | 電壓 (V) |
控制器 |
|---|---|---|---|---|---|---|---|---|---|---|
| 8x1 |  |

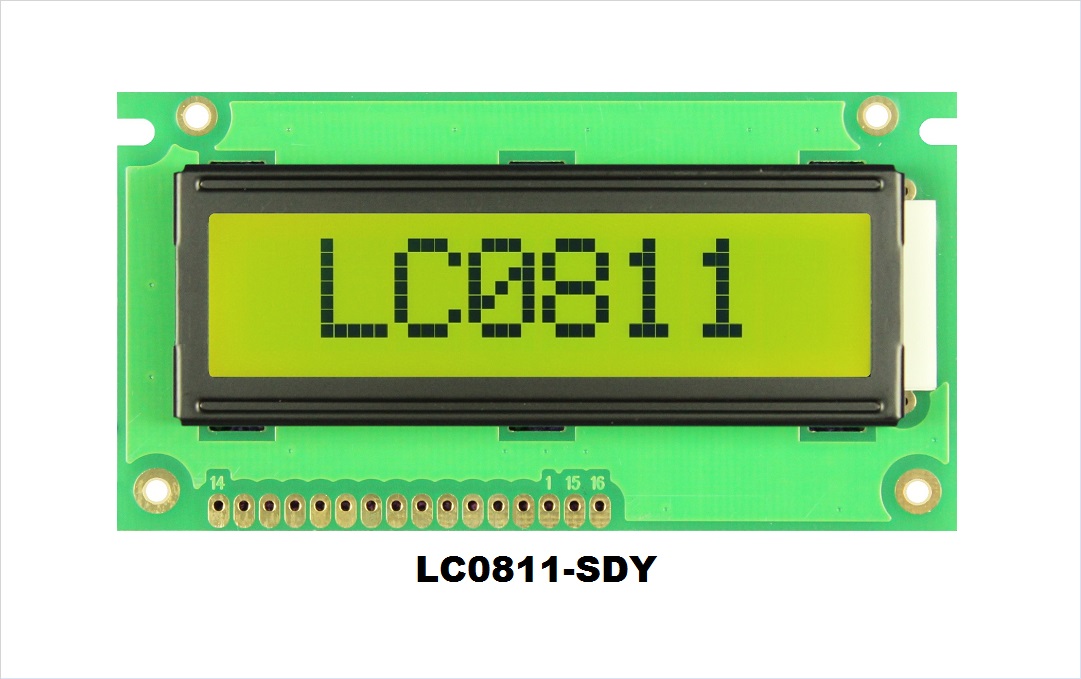

LC0811-DY | 84.0x44.0x12.5 | 64.6x16.0 | 6.45x10.75 | 1.25x1.30 | LED黃綠 | 4/8-BIT 6800 | 5 | SPLC780D1 |
| 8x2 |  |

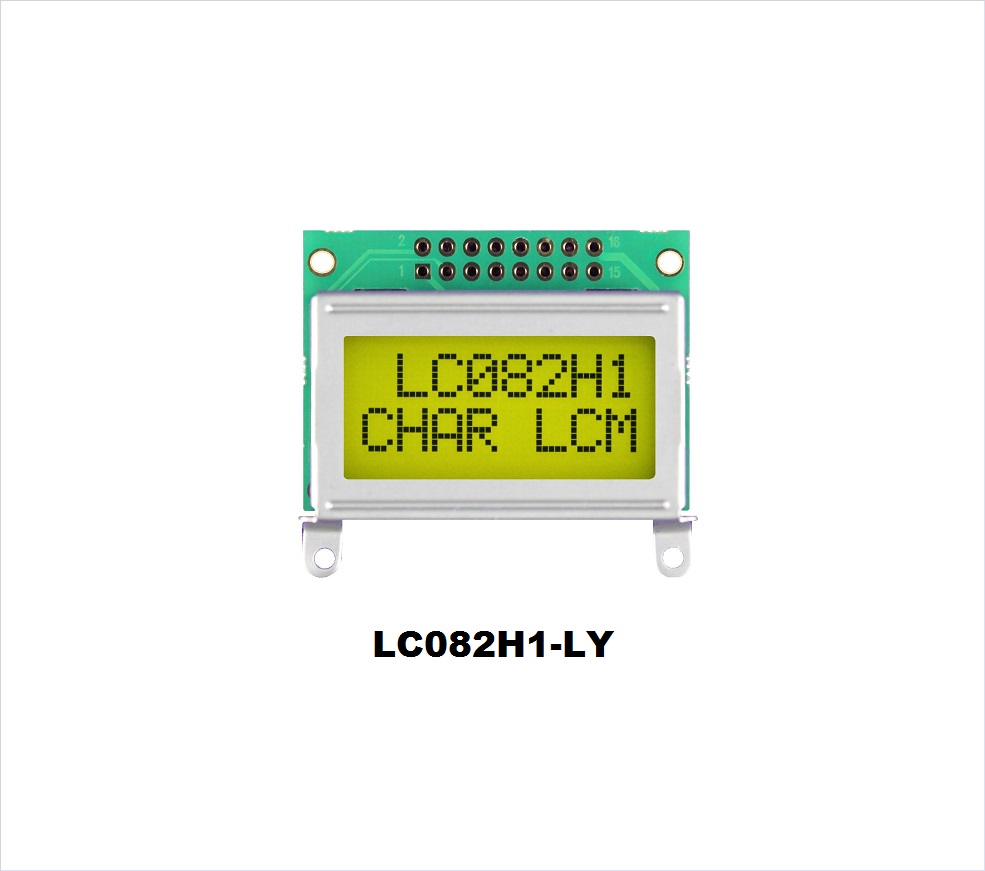

LC082H1-LY | 40.0x35.4x13.0 | 30.4x13.9 | 2.95x4.75 | 0.55x0.55 | LED黃綠 | 4/8-BIT 6800 | 5 | SPLC780D1 |
| 8x2 |  |

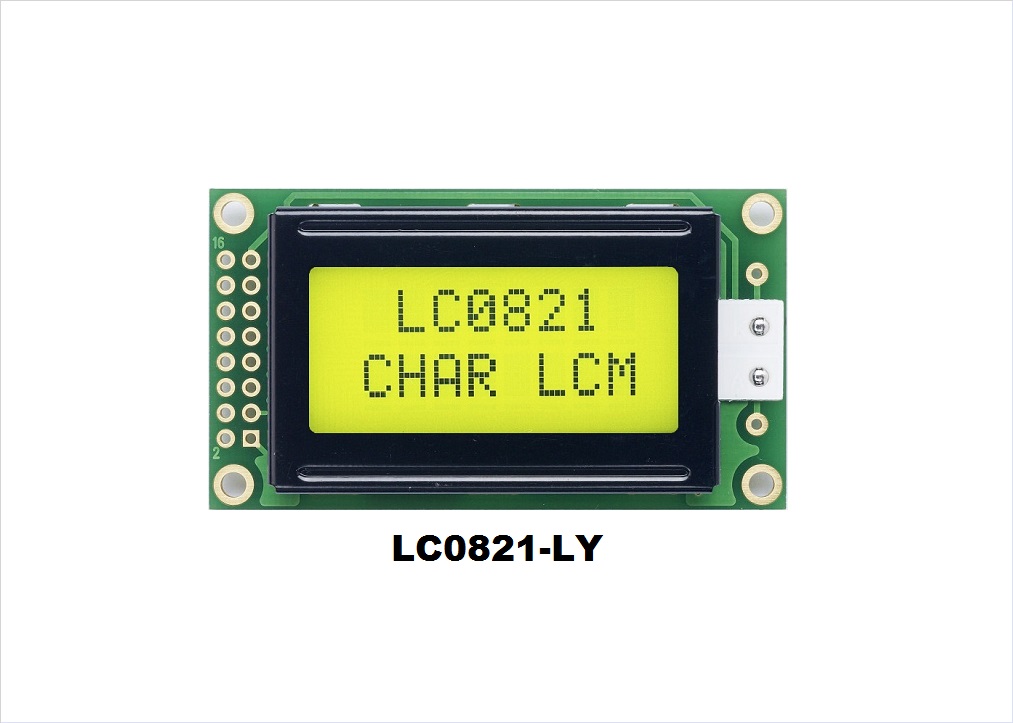

LC0821-LY | 58.0x32.0x14..0 | 35.0x15.0 | 2.45x5.00 | 0.45x0.50 | LED黃綠 | 4/8-BIT 6800 | 5 | SPLC780D1 |
| 8x2 |  |

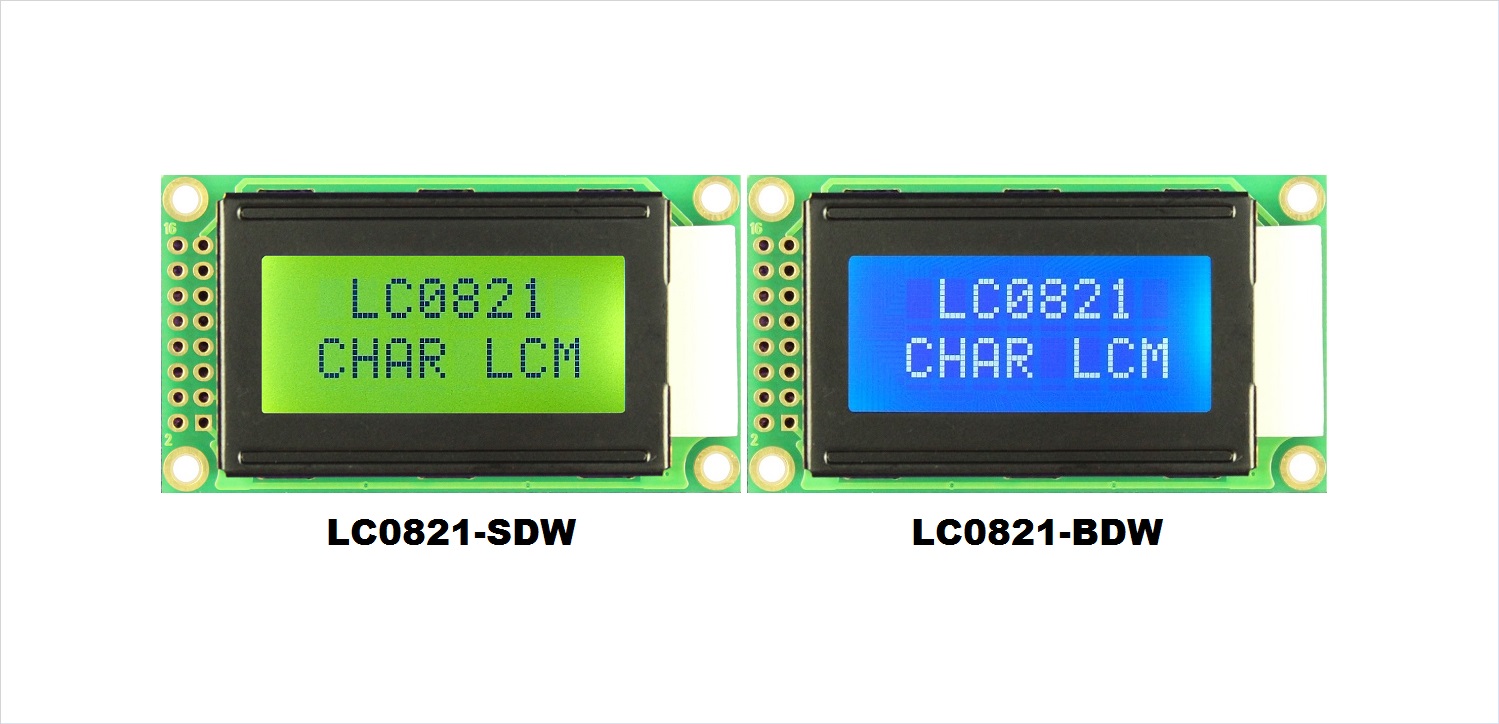

LC0821-DW | 58.0x32.0x14.0 | 35.0x15.0 | 2.45x5.00 | 0.45x0.50 | LED白光 | 4/8-BIT 6800 | 5 | SPLC780D1 |
| 8x2 |  |

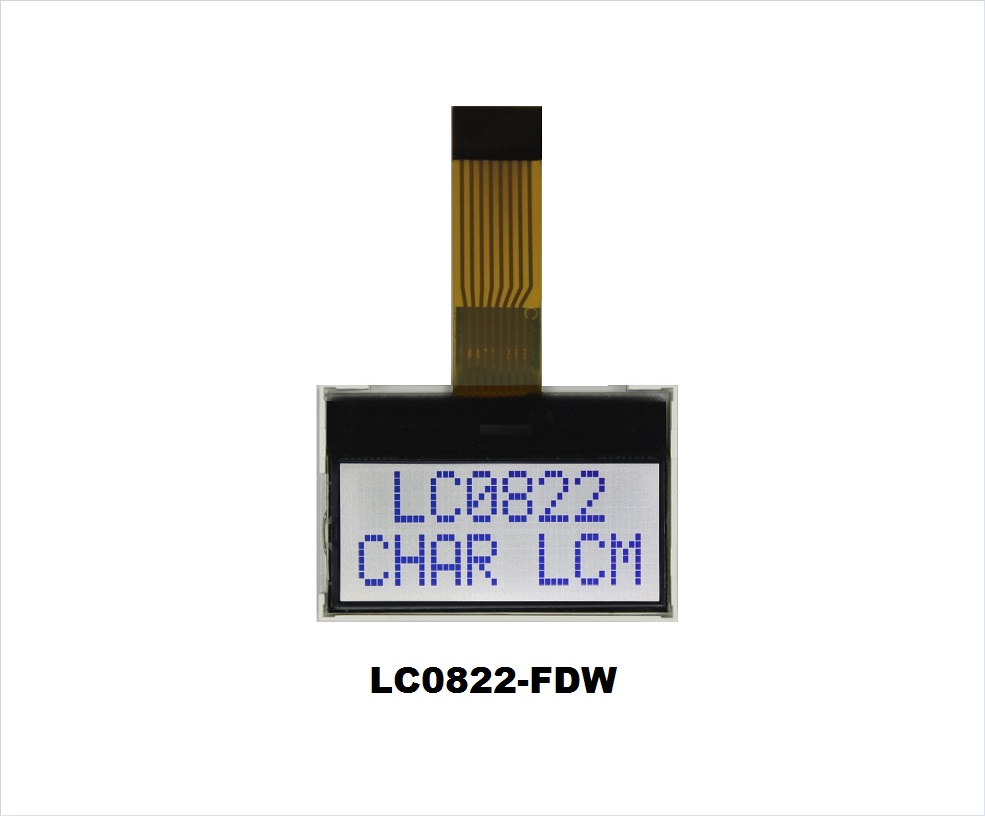

LC0822-DW | 36.2x24.0x8.5 | 31.6x13.0 | 2.95x5.55 | 0.55x0.65 | LED白光 | I2C | 3.3 or 5 | ST7032i |
| 16x1 |  |

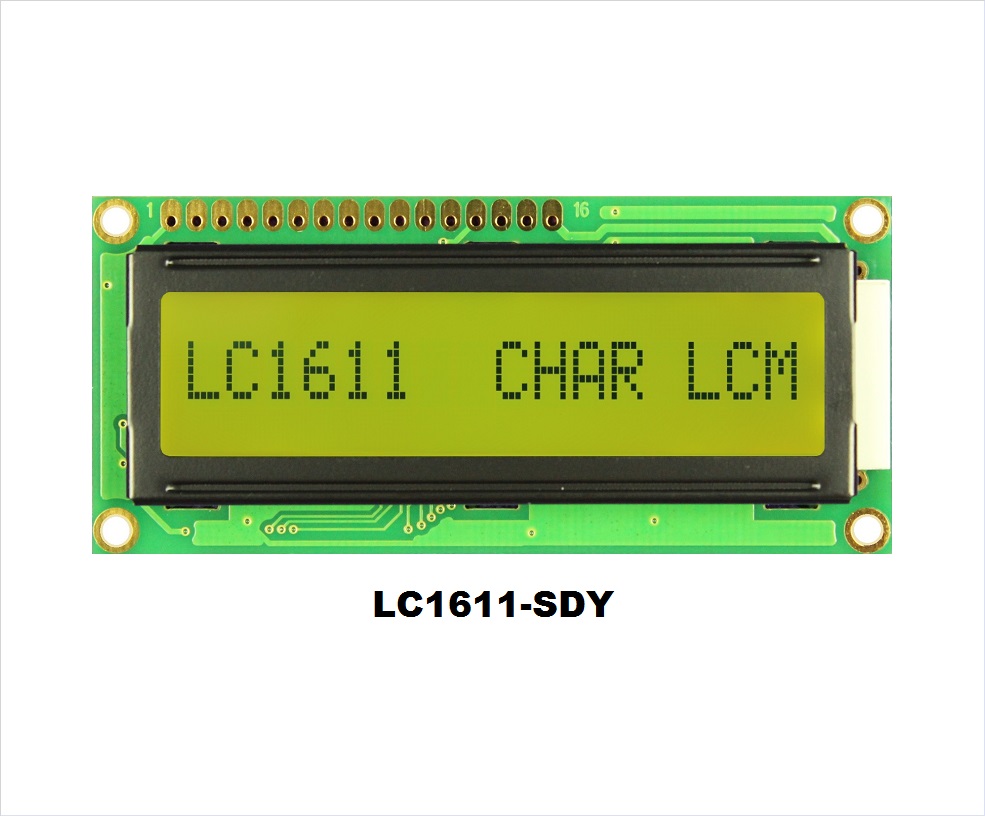

LC1611-DY | 80.0x36.0x12.5 | 64.6x16.0 | 3.07x6.56 | 0.55x0.75 | LED黃綠 | 4/8-BIT 6800 | 5 | SPLC780D1 |
| 16x2 |  |

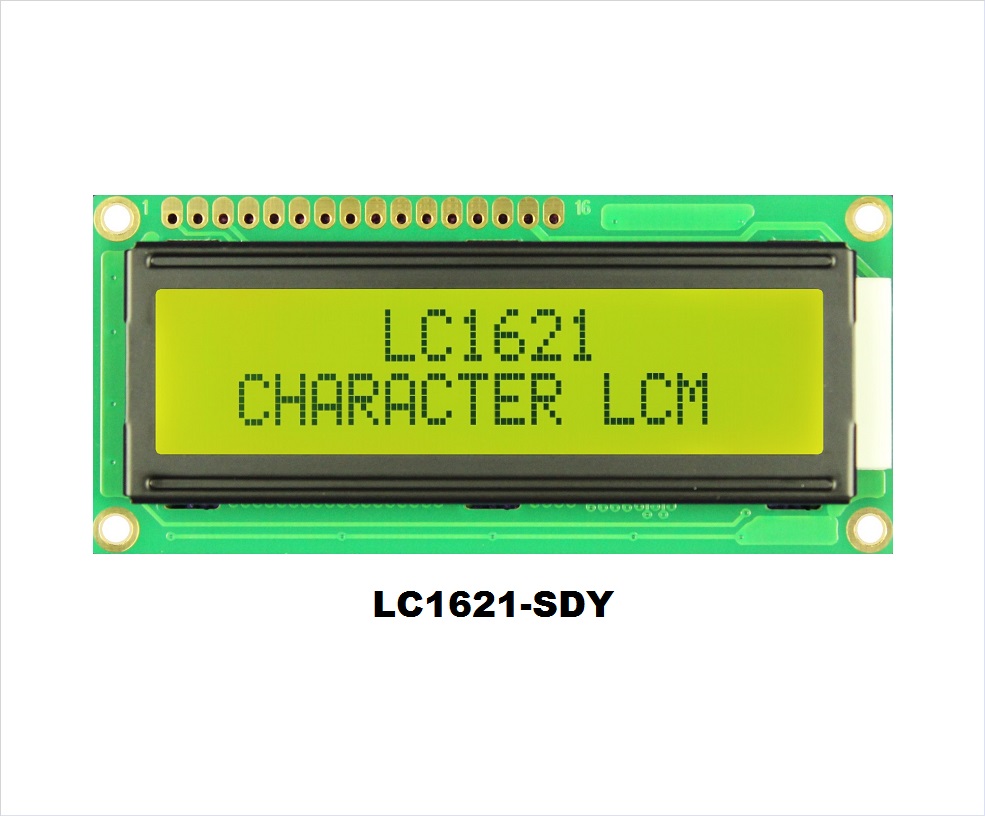

LC1621-DY | 80.0x36.0x12.5 | 64.6x16.0 | 2.95x5.55 | 0.55x0.65 | LED黃綠 | 4/8-BIT 6800 | 5 | SPLC780D1 |
| 16x2 |  |

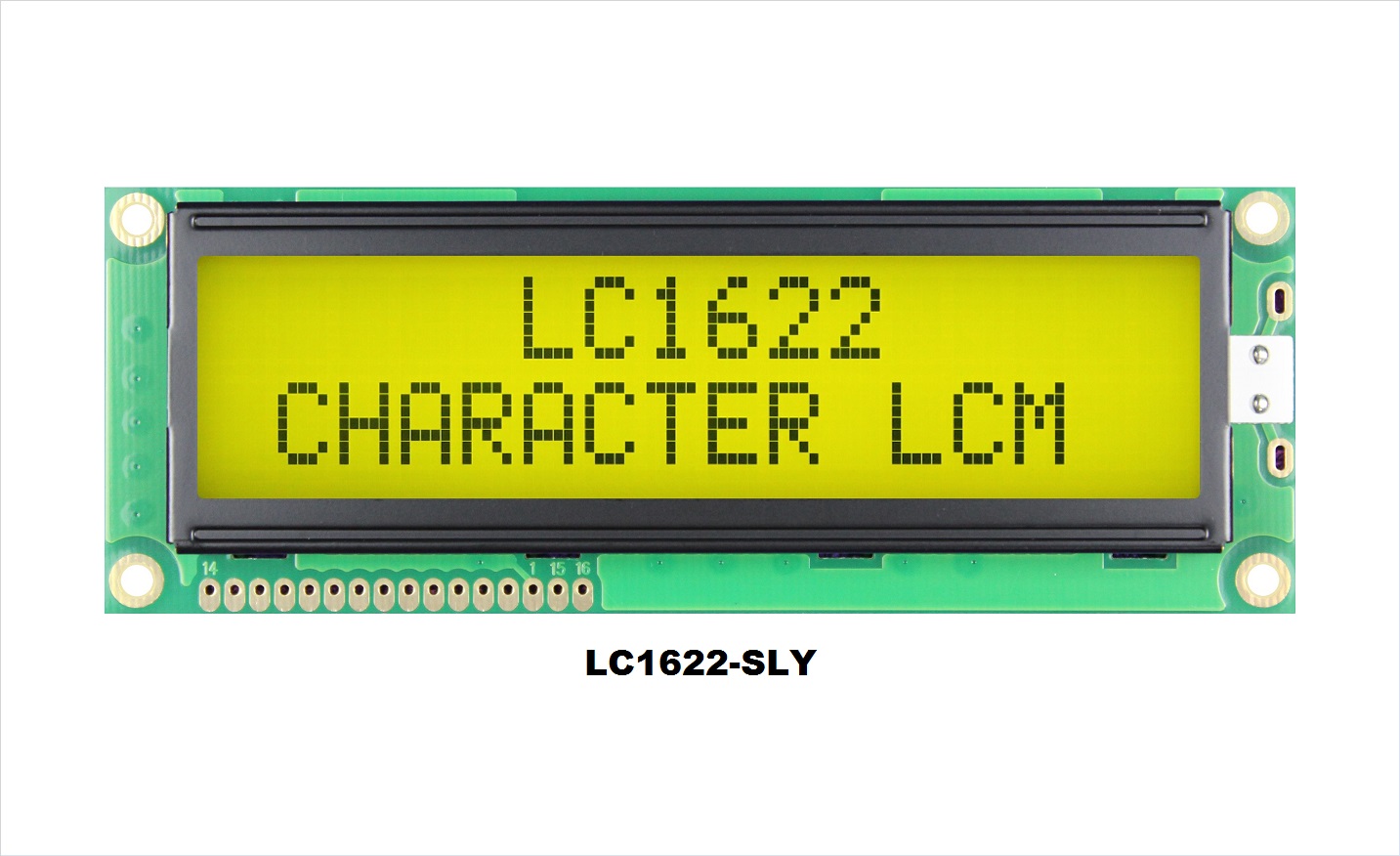

LC1622-LY | 122.0x44.0x14.0 | 99.0x24.0 | 4.84x9.66 | 0.92x1.10 | LED黃綠 | 4/8-BIT 6800 | 5 | SPLC780D1 |
| 16x2 |  |

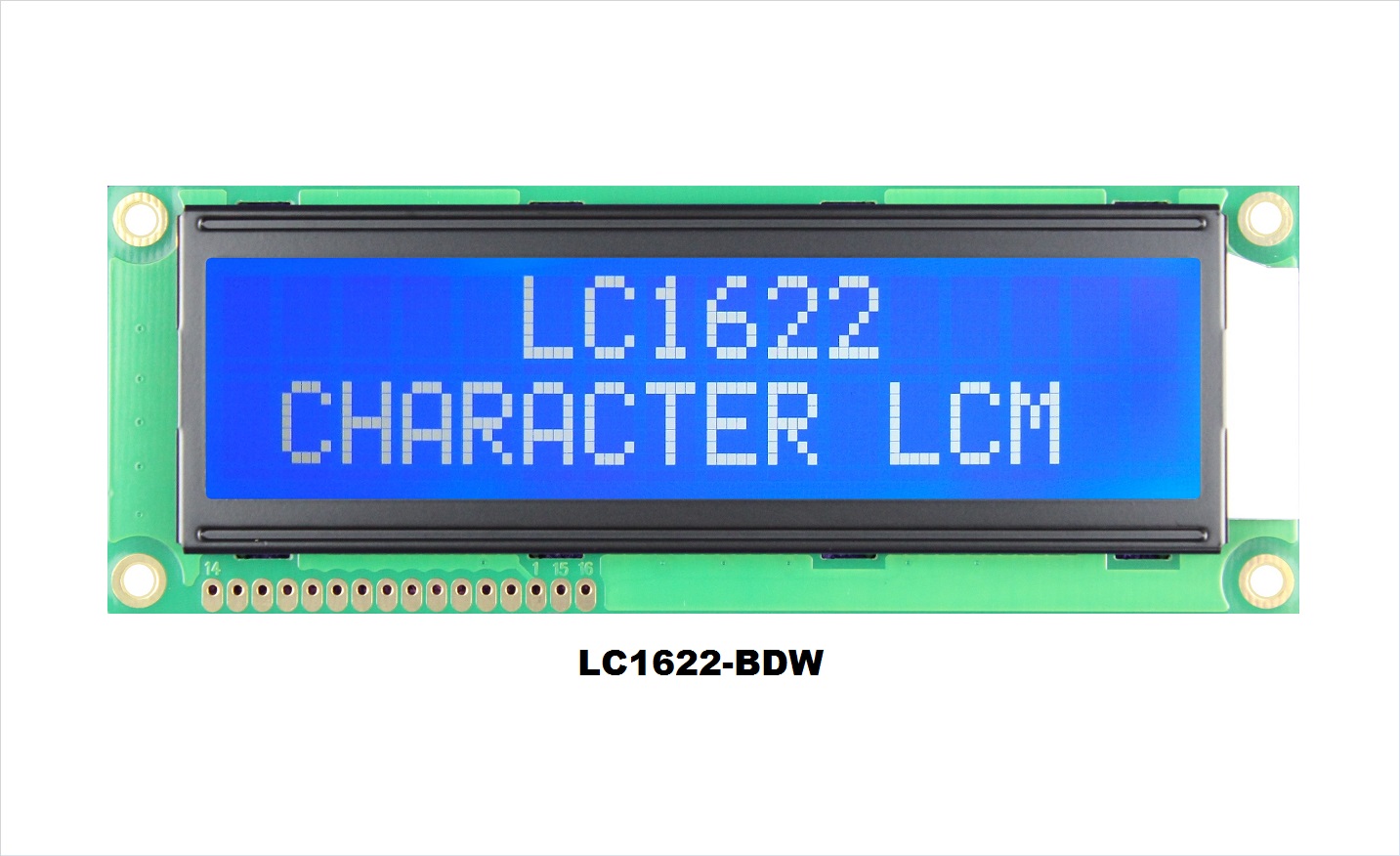

LC1622-DW | 122.0x44.0x11.5 | 99.0x24.0 | 4.84x9.66 | 0.92x1.10 | LED白光 | 4/8-BIT 6800 | 5 | SPLC780D1 |
| 16x2 |  |

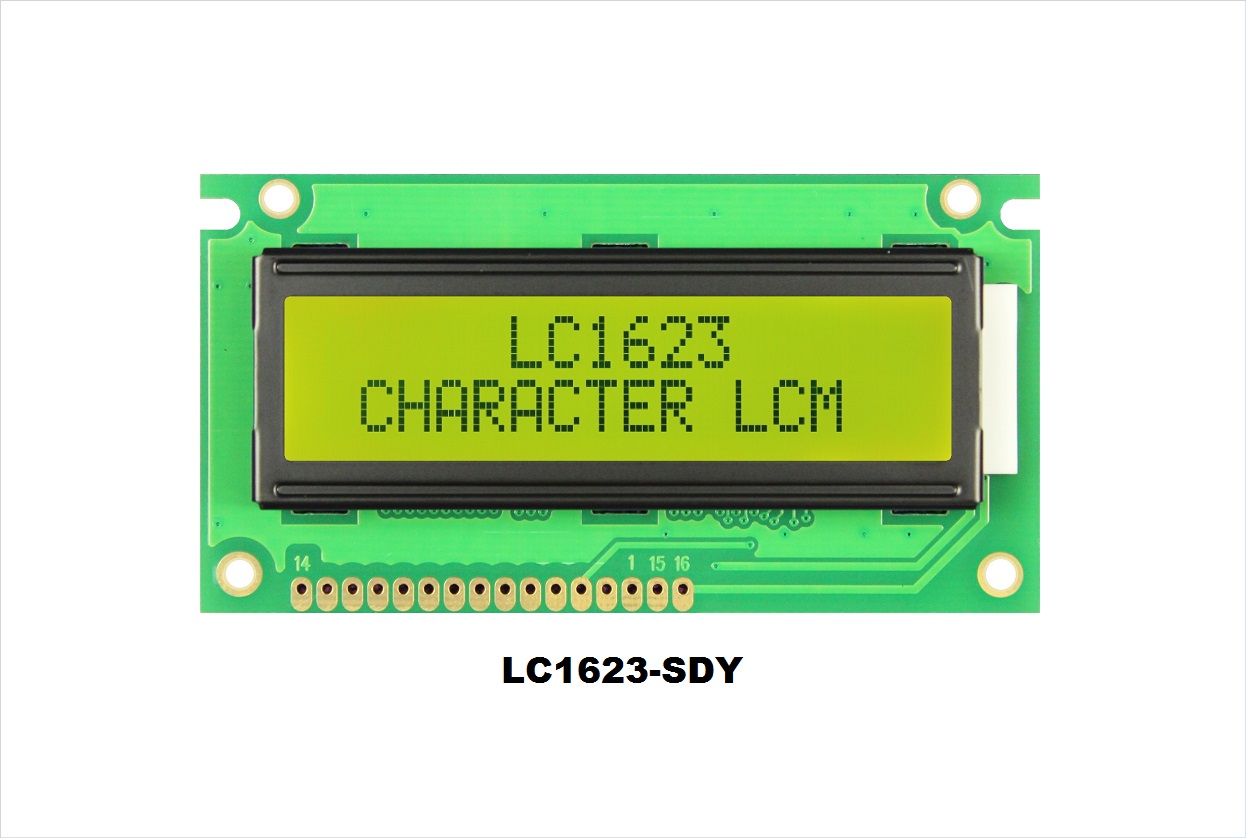

LC1623-DY | 84.0x44.0x12.5 | 64.6x16.0 | 2.95x5.55 | 0.55x0.65 | LED黃綠 | 4/8-BIT 6800 | 5 | SPLC780D1 |
| 16x2 |  |

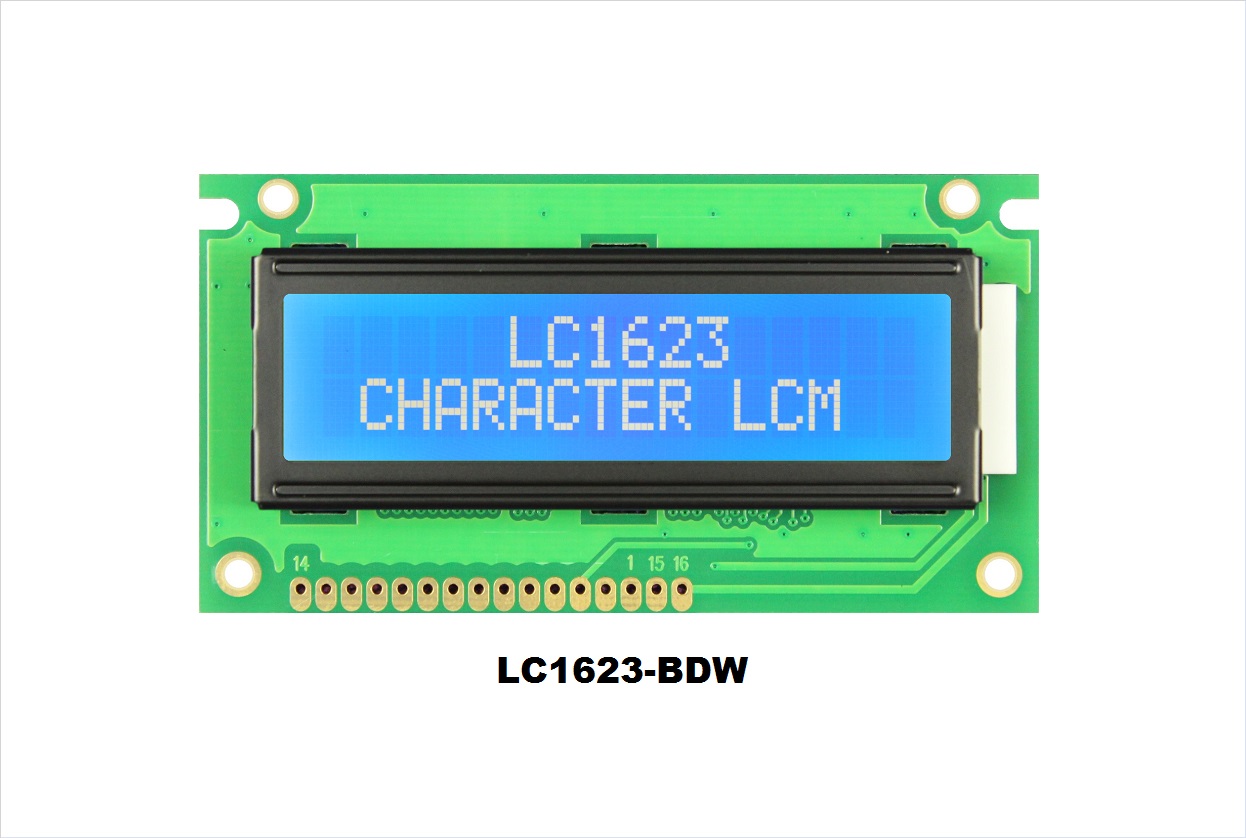

LC1623-DW | 84.0x44.0x12.5 | 64.6x16.0 | 2.95x5.55 | 0.55x0.65 | LED白光 | 4/8-BIT 6800 | 5 | SPLC780D1 |
| 16x2 |  |

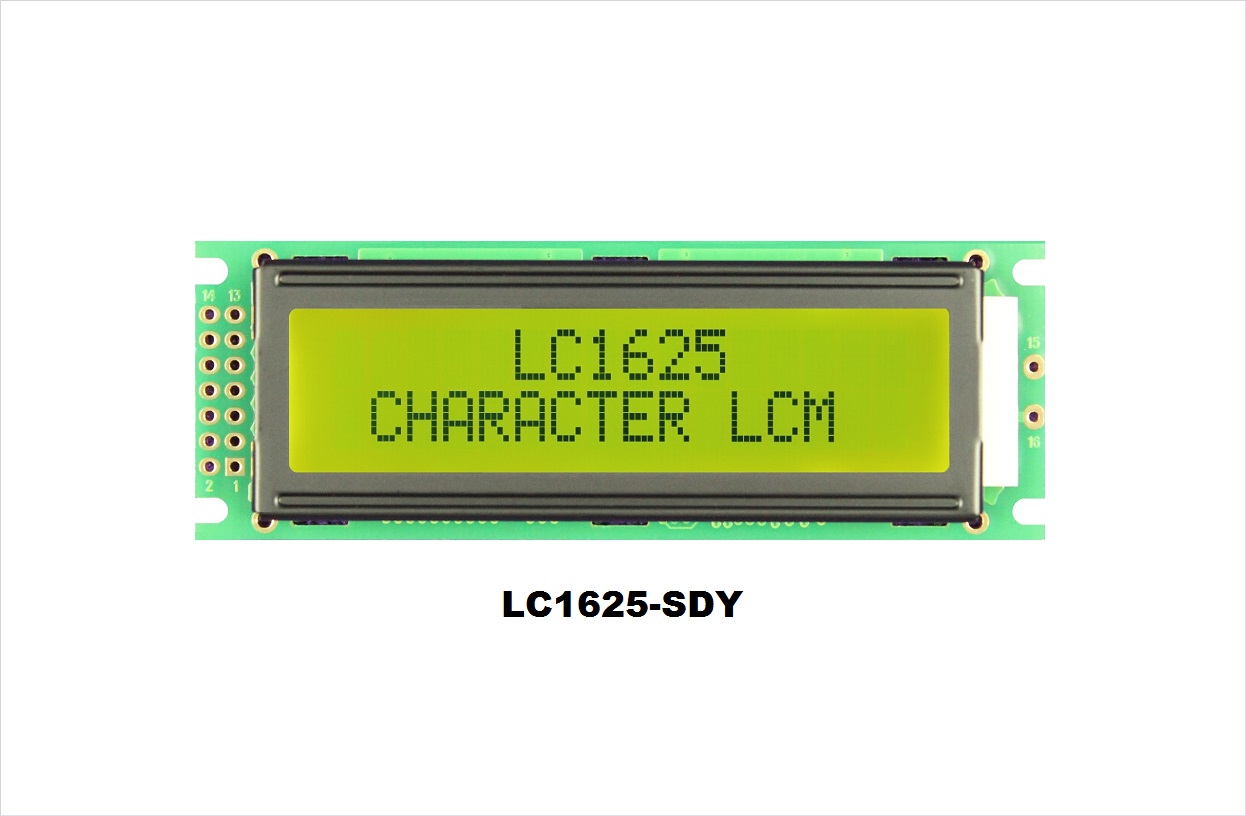

LC1625-DY | 85.0x30.0x12.5 | 64.6x16.0 | 2.95x5.55 | 0.55x0.65 | LED黃綠 | 4/8-BIT 6800 | 5 | SPLC780D1 |
| 16x2 |  |

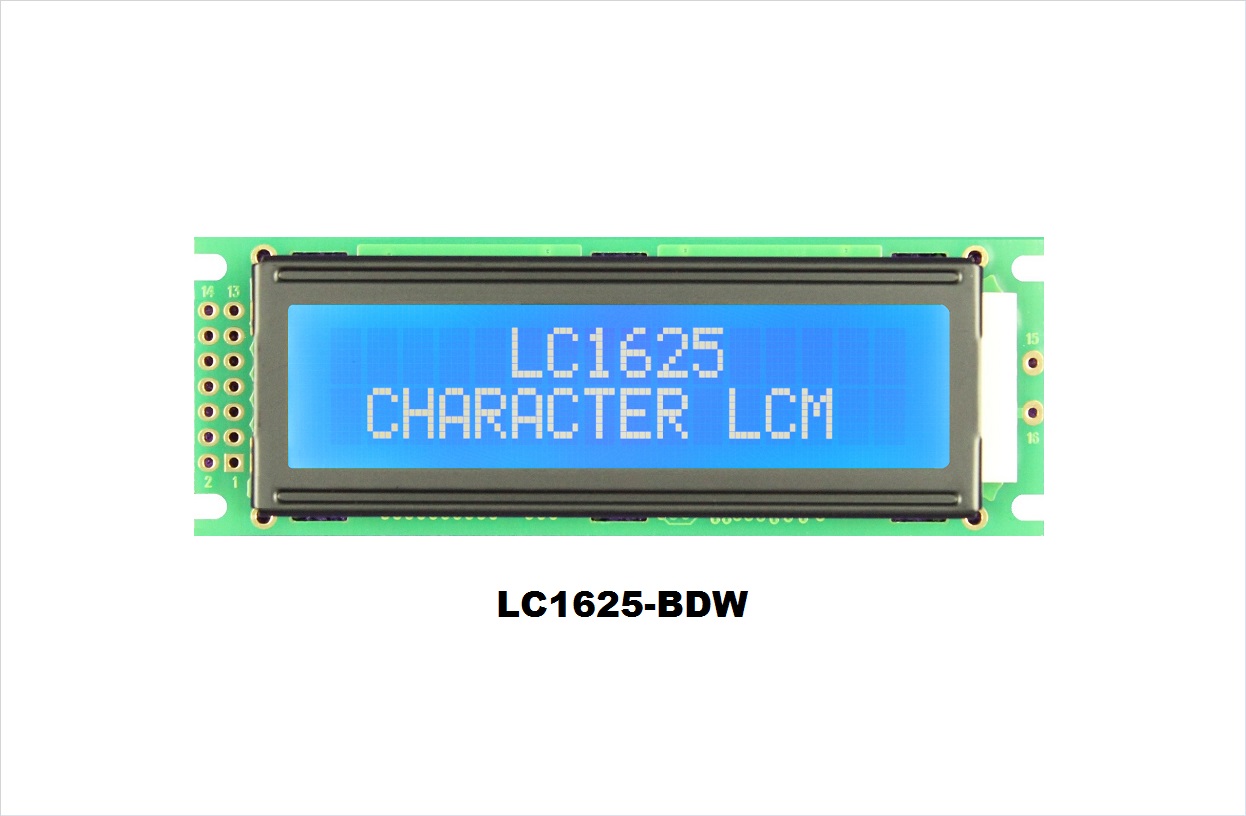

LC1625-DW | 85.0x30.0x12.5 | 64.6x16.0 | 2.95x5.55 | 0.55x0.65 | LED白光 | 4/8-BIT 6800 | 5 | SPLC780D1 |
| 16x2 |  |

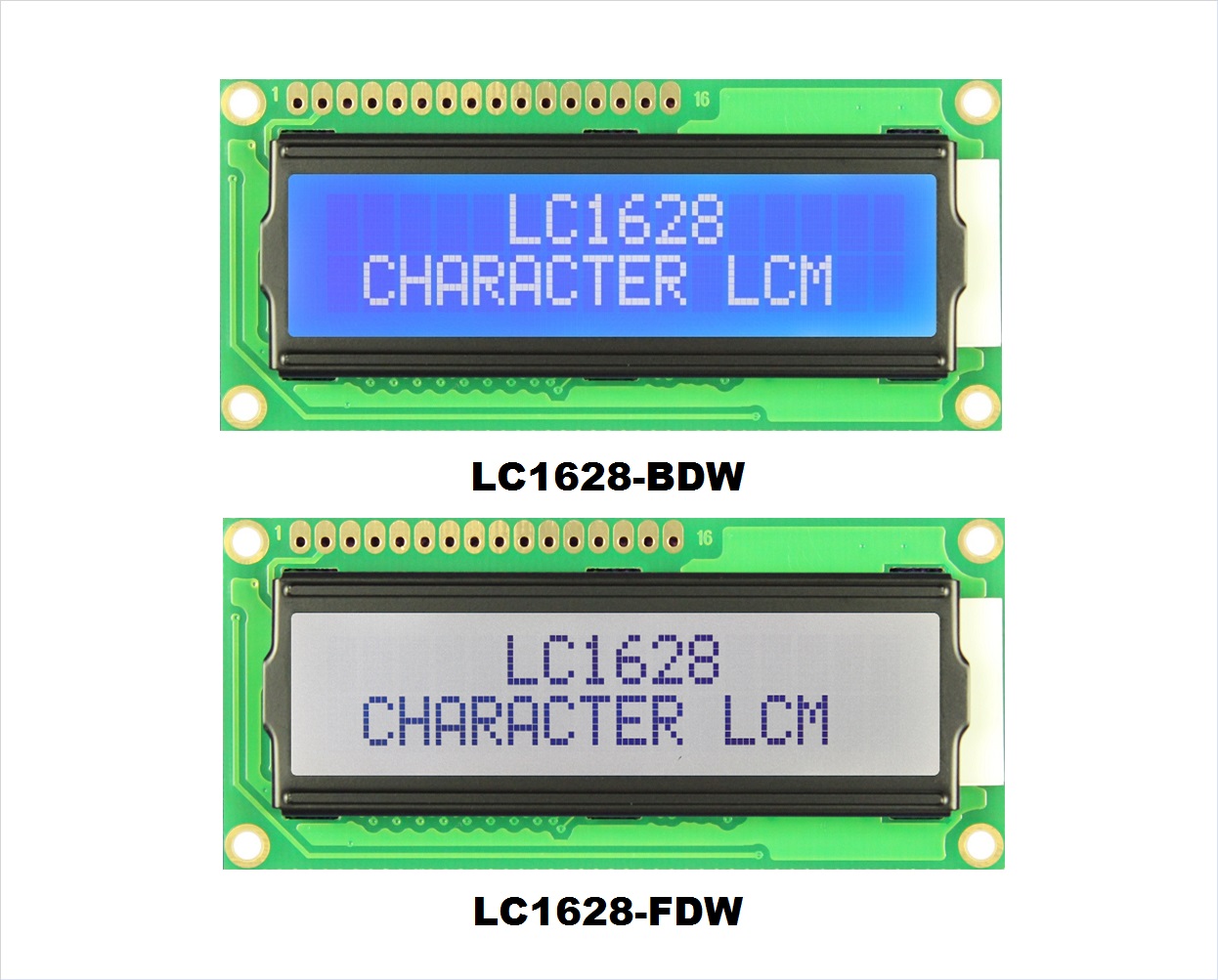

LC1628-DW | 80.0x36.0x12.5 | 64.5x16.0 | 2.96x5.56 | 0.56x0.66 | LED白光 | 4/8-BIT 6800 | 5 | SPLC780D1 |
| 16x2 |  |

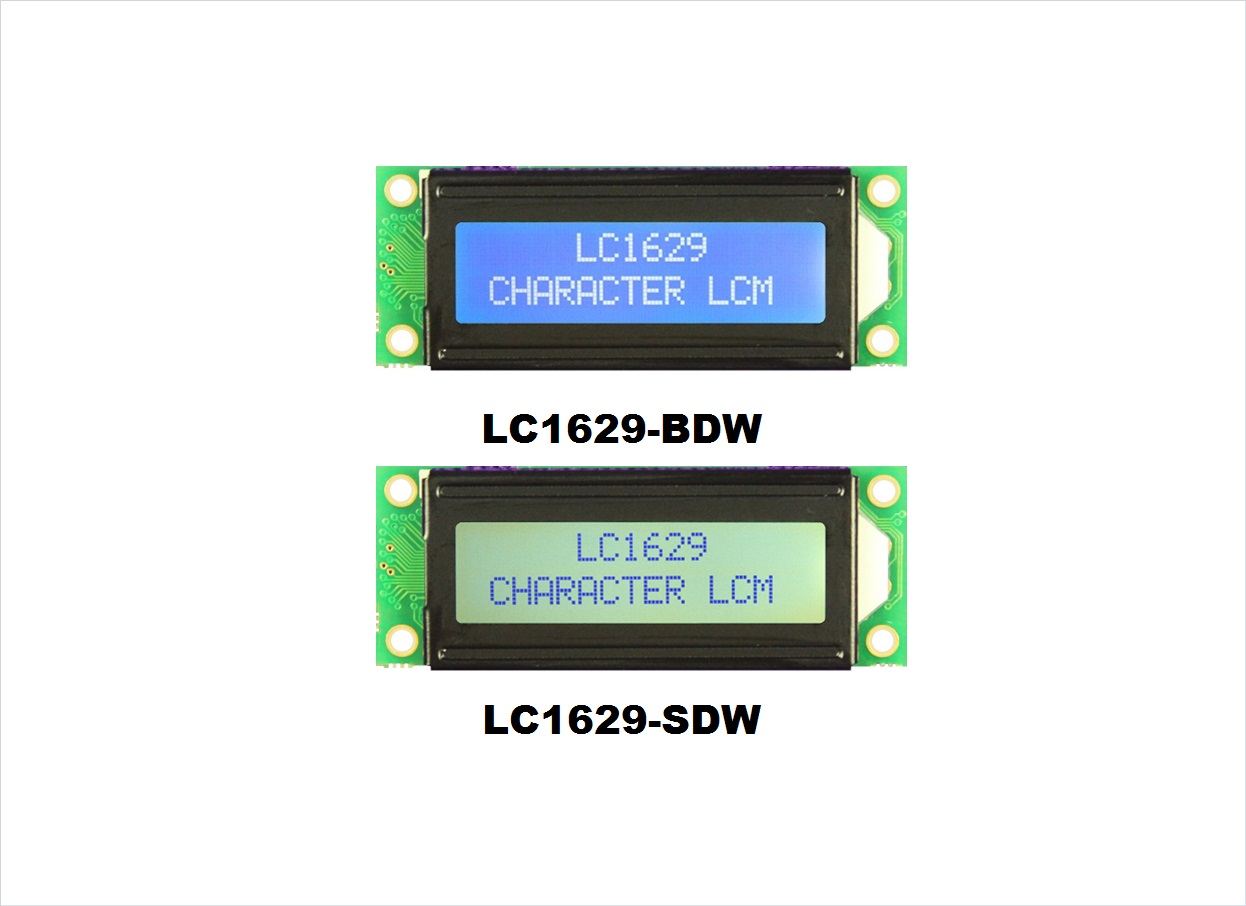

LC1629-DW | 53.0x20.0x9.0 | 36.0x10.0 | 1.85x3.15 | 0.33x0.35 | LED白光 | 4/8-BIT 6800 | 5 | SPLC780D1 |
| 16x2 |  |

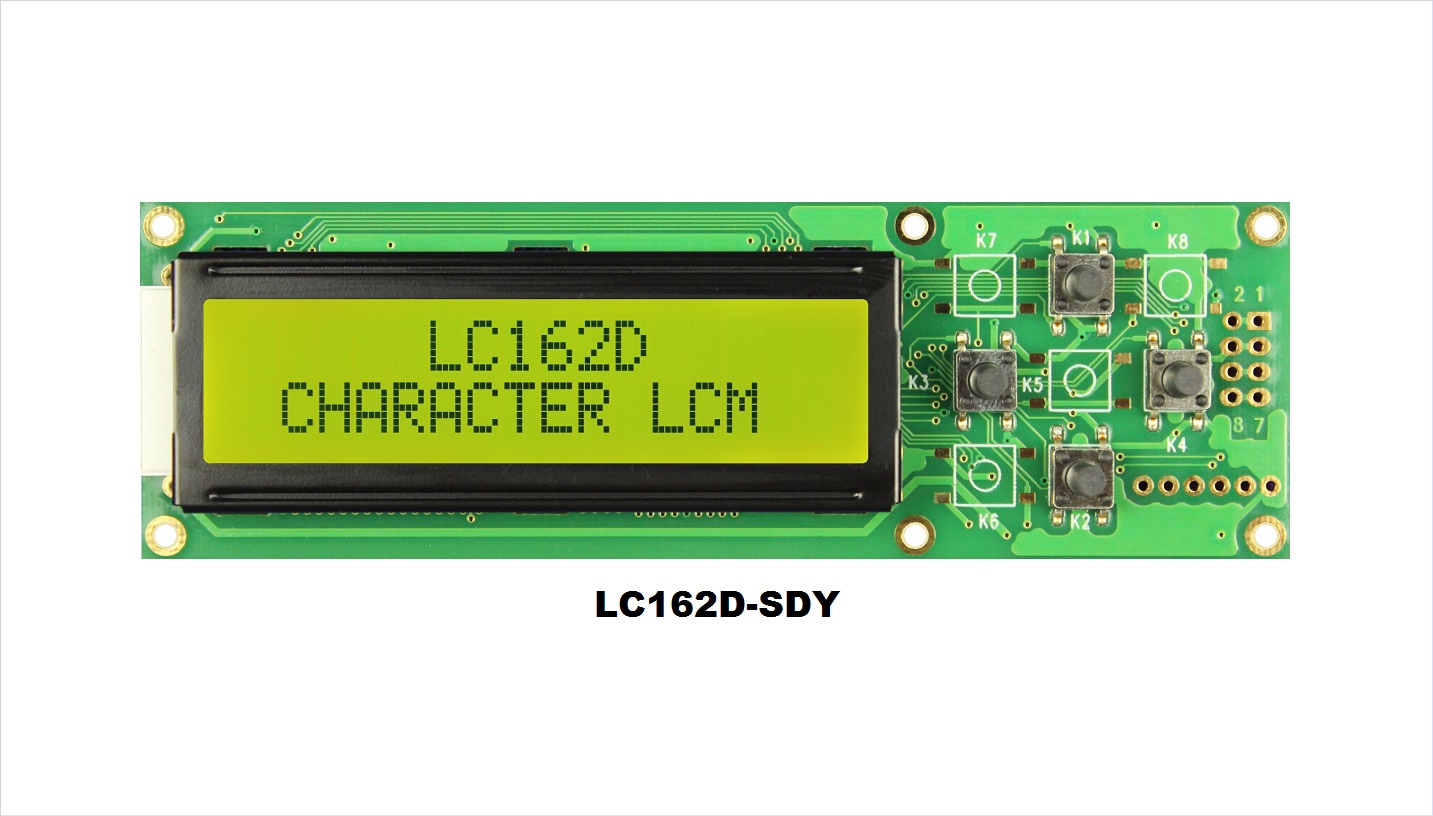

LC162D-DY | 115.0x36.0x12.5 | 64.6x16.0 | 2.95x5.55 | 0.55x0.65 | LED黃綠 | RS232 | 5 | STM8S |
| 16x2 |  |

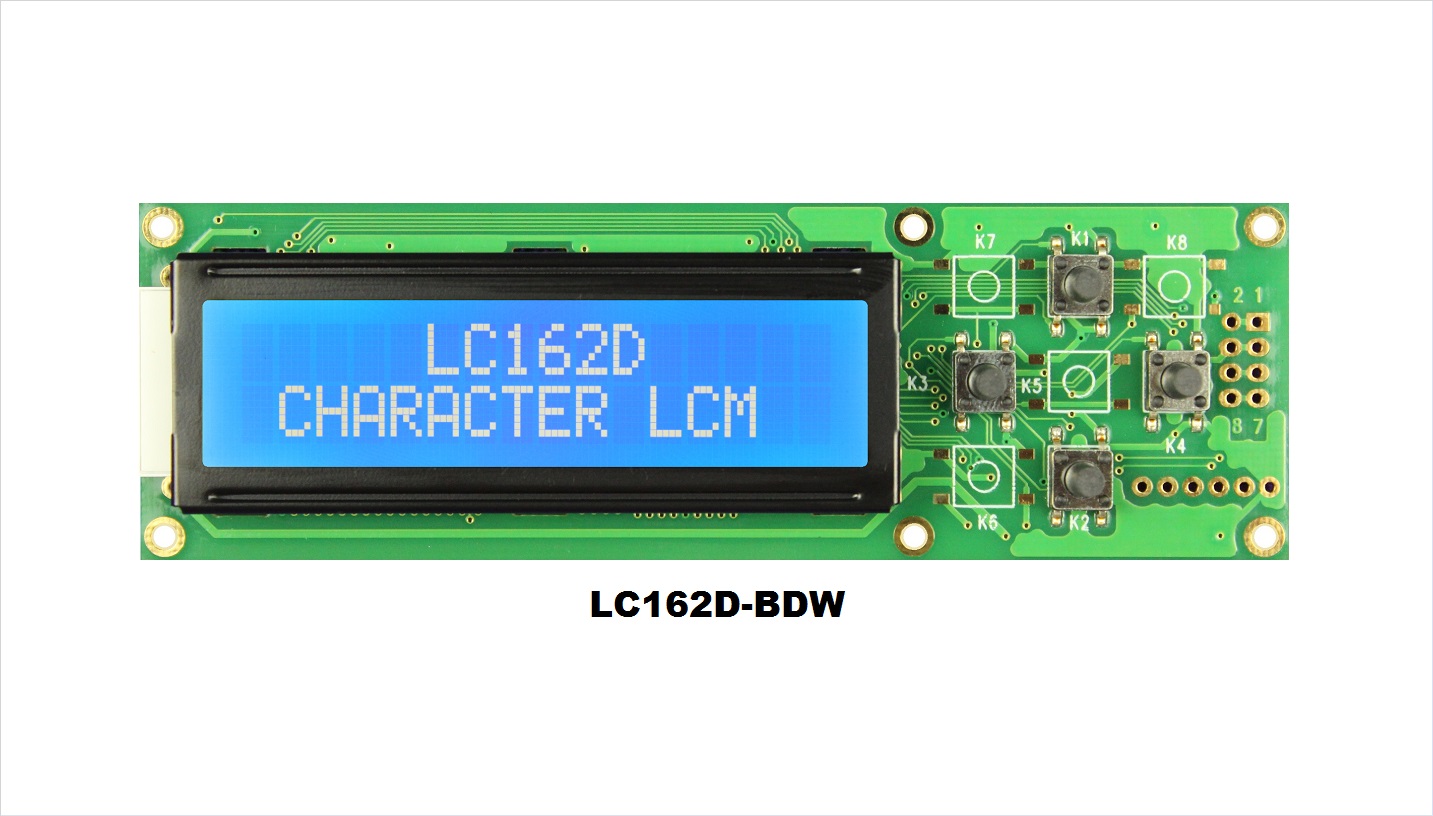

LC162D-DW | 115.0x36.0x12.5 | 64.6x16.0 | 2.95x5.55 | 0.55x0.65 | LED白光 | RS232 | 5 | STM8S |
| 16x2 |  |

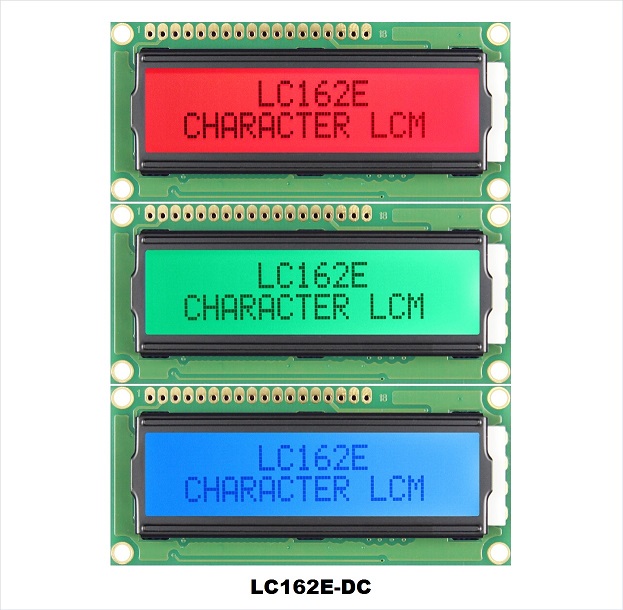

LC162E-DC | 80.0x36.0x12.5 | 64.5x16.0 | 2.96x5.56 | 0.56x0.66 | LED紅綠藍 | 4/8-BIT 6800 | 5 | SPLC780D1 |
| 16x4 |  |

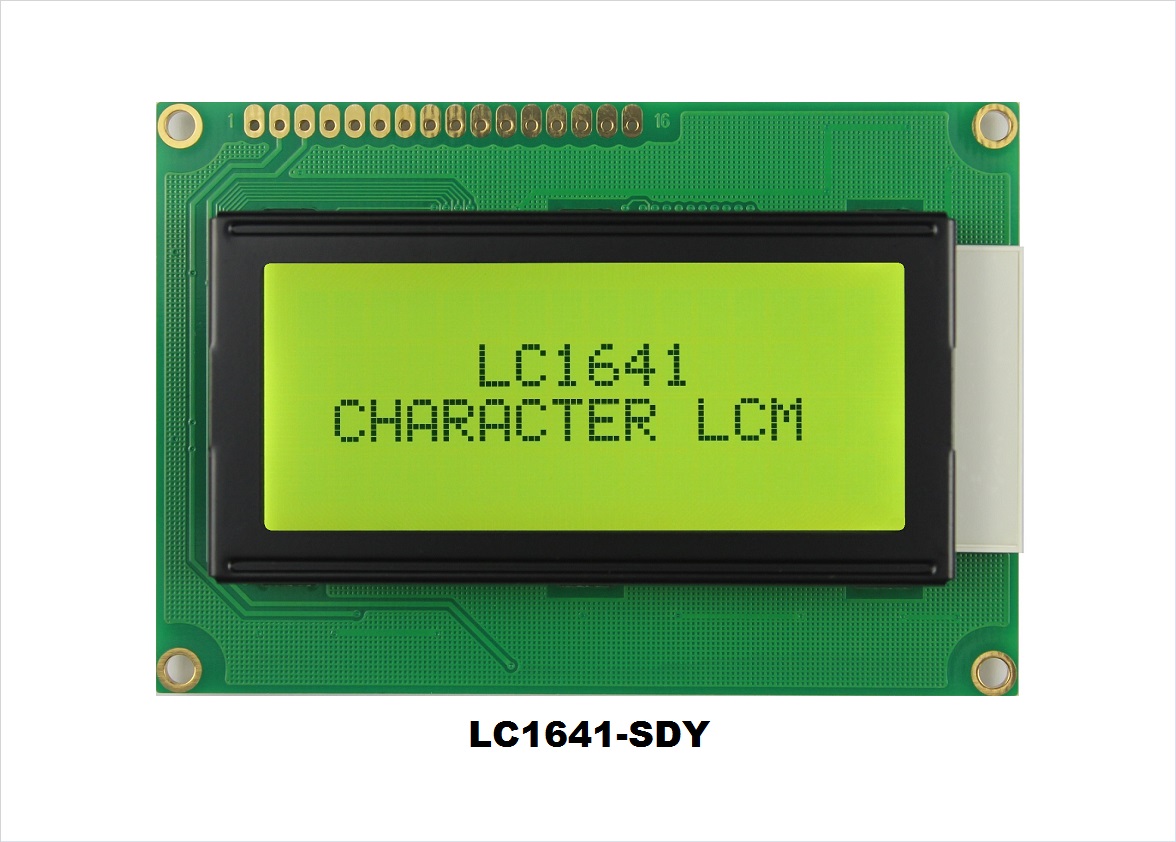

LC1641-DY | 87.0x60.0x13.5 | 62.0x26.0 | 2.95x4.75 | 0.55x0.55 | LED黃綠 | 4/8-BIT 6800 | 5 | SPLC780D1 |
| 16x4 |  |

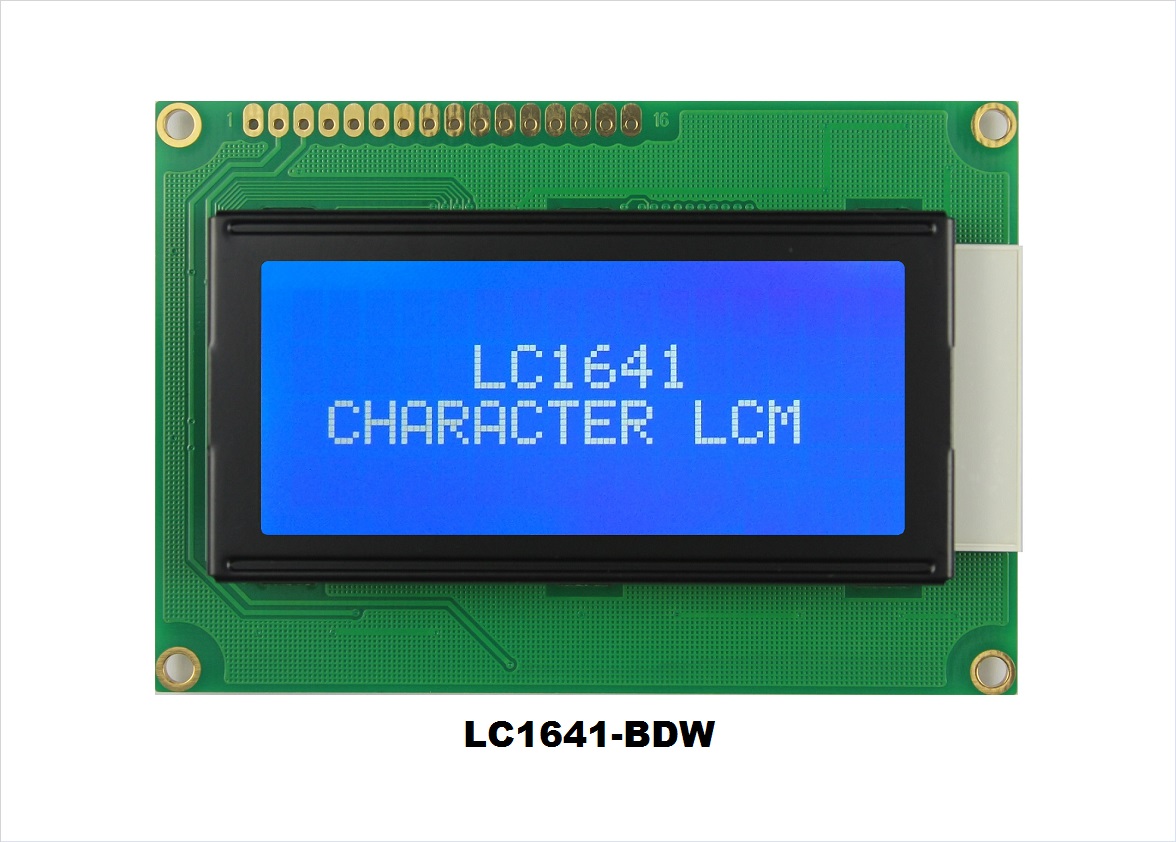

LC1641-DW | 87.0x60.0x13.5 | 62.0x26.0 | 2.95x4.75 | 0.55x0.55 | LED白光 | 4/8-BIT 6800 | 5 | SPLC780D1 |
| 20x2 |  |

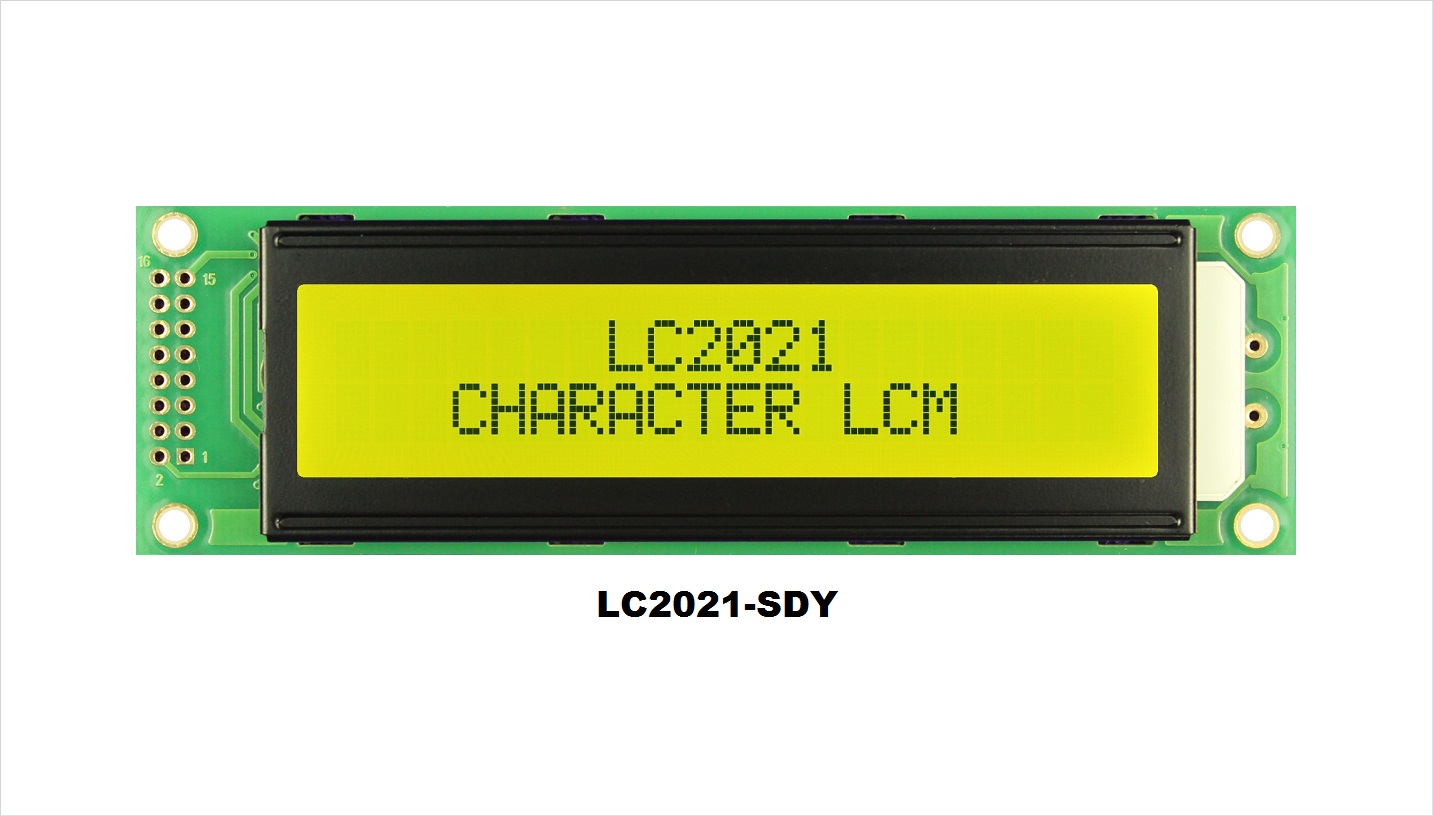

LC2021-DY | 116.0x35.0x13.5 | 83.0x18.6 | 3.20x5.55 | 0.60x0.65 | LED黃綠 | 4/8-BIT 6800 | 5 | SPLC780D1 |
| 20x2 |  |

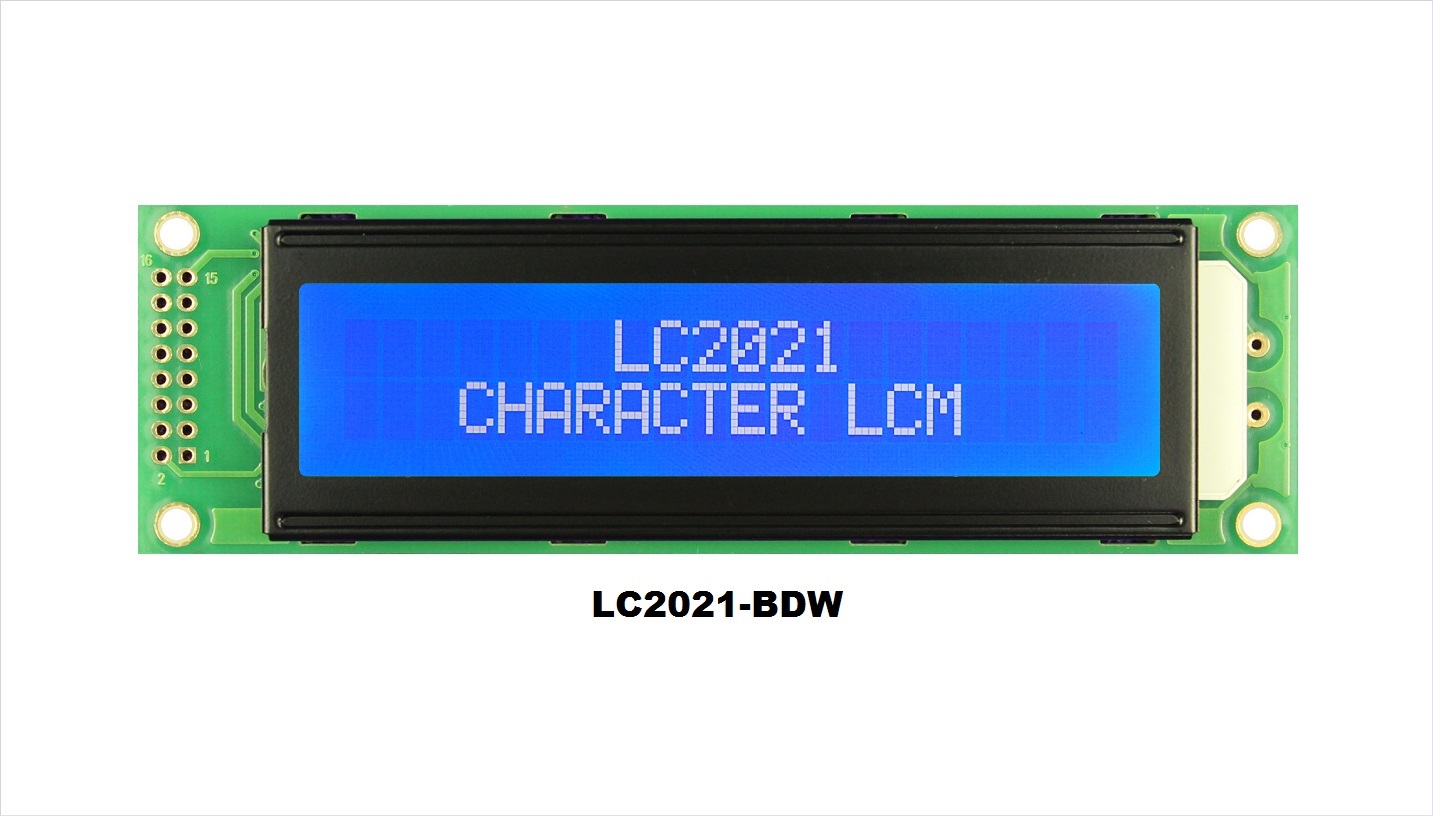

LC2021-DW | 116.0x35.0x13.5 | 83.0x18.6 | 3.20x5.55 | 0.60x0.65 | LED白光 | 4/8-BIT 6800 | 5 | SPLC780D1 |
| 20x2 |  |

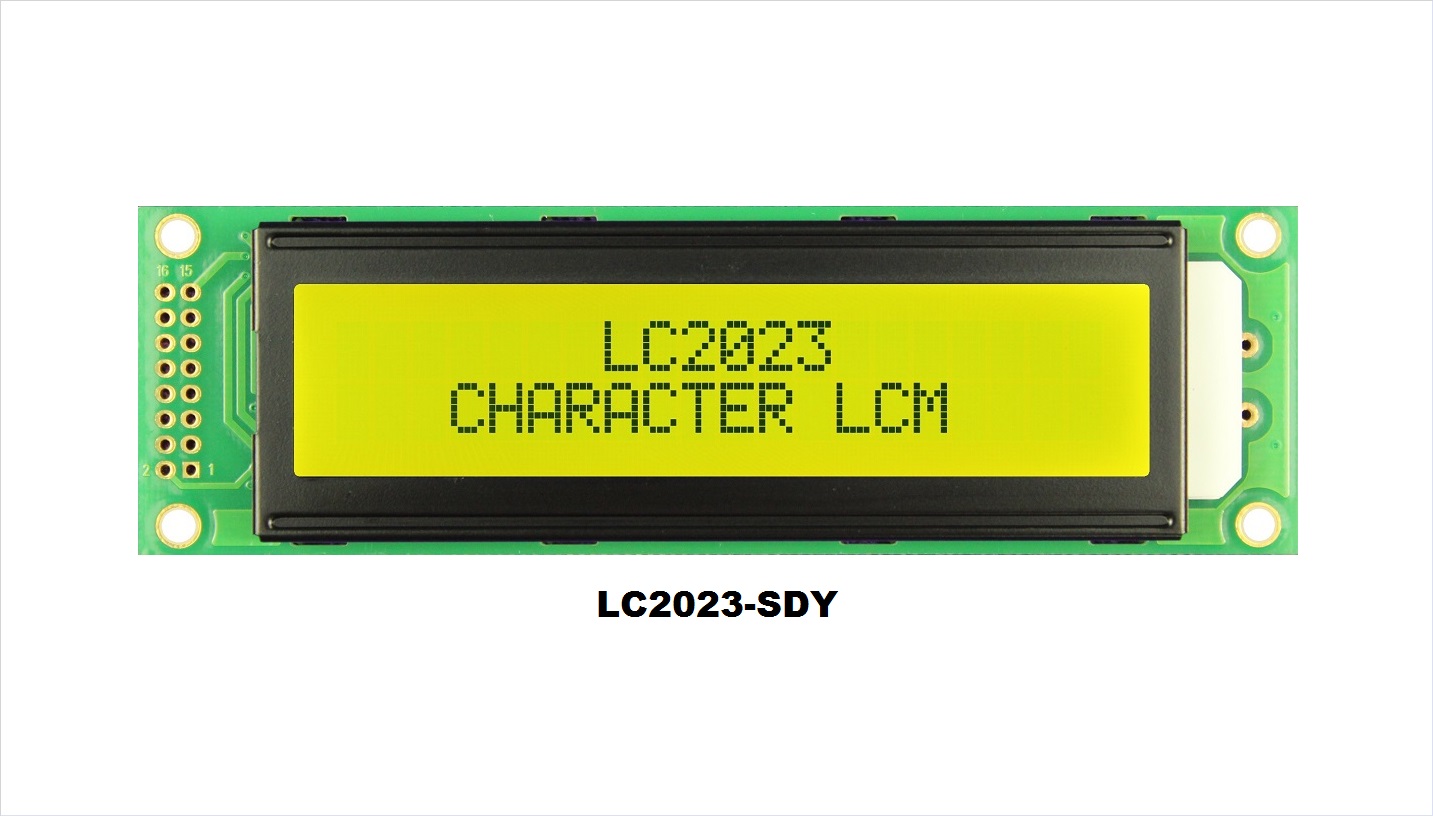

LC2023-DY | 116.0x35.0x13.5 | 83.0x18.6 | 3.2x5.55 | 0.6x0.65 | LED黃綠 | 4/8-BIT 6800 | 5 | SPLC780D1 |
| 20x2 |  |
LC2023-DW | 116.0x35.0x13.5 | 83.0x18.6 | 3.2 x 5.55 | 0.6 x 0.65 | LED白光 | 4/8-BIT 6800 | 5 | SPLC780D1 |
| 20x2 |  |

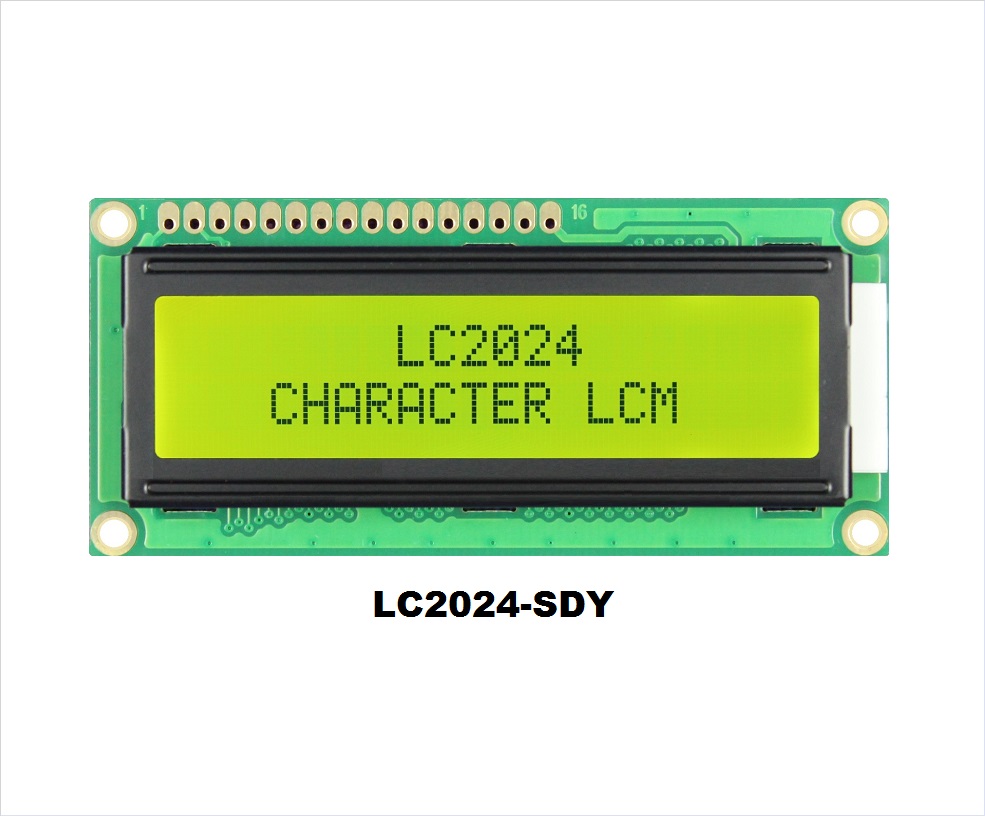

LC2024-DY | 80.0x36.0x12.5 | 64.6x16.0 | 2.50x4.67 | 0.46x0.54 | LED黃綠 | 4/8-BIT 6800 | 5 | SPLC780D1 |
| 20x4 |  |

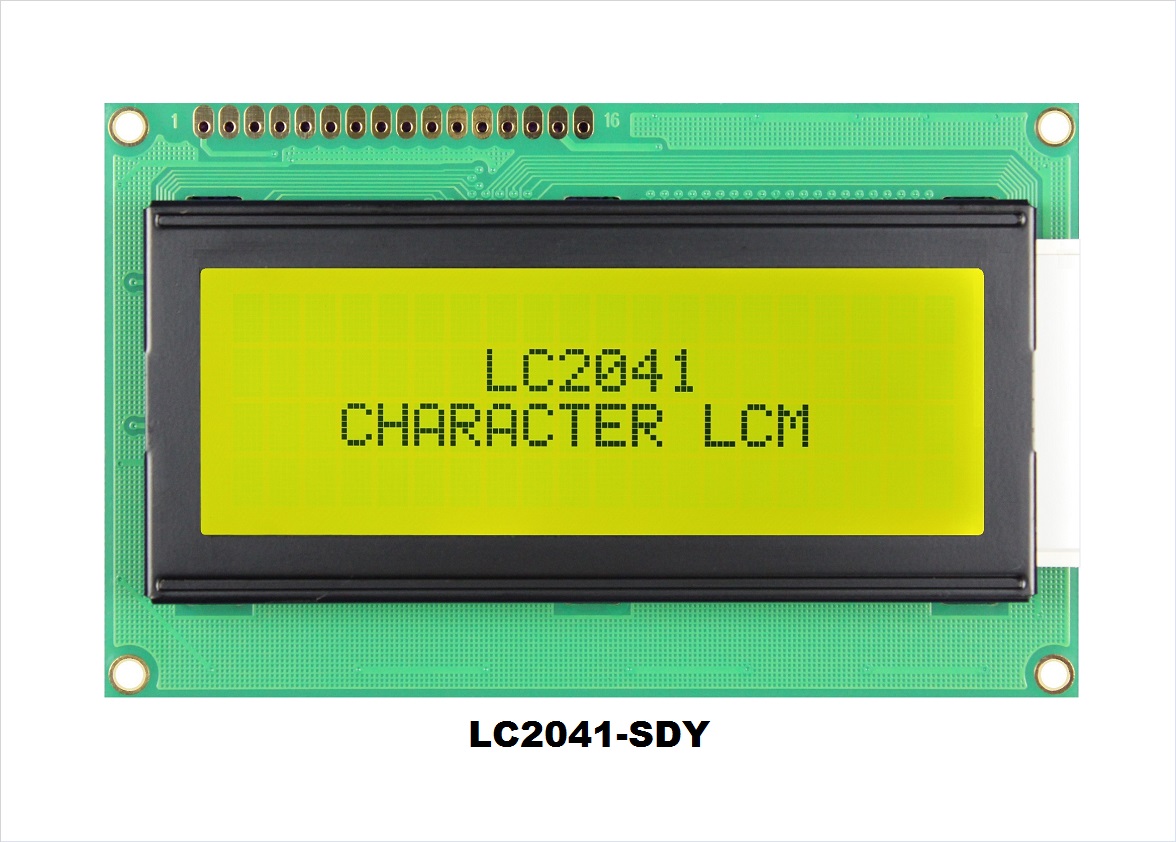

LC2041-DY | 98.0x60.0x13.5 | 76.0x26.0 | 2.95x4.75 | 0.55x0.55 | LED黃綠 | 4/8-BIT 6800 | 5 | SPLC780D1 |
| 20x4 |  |

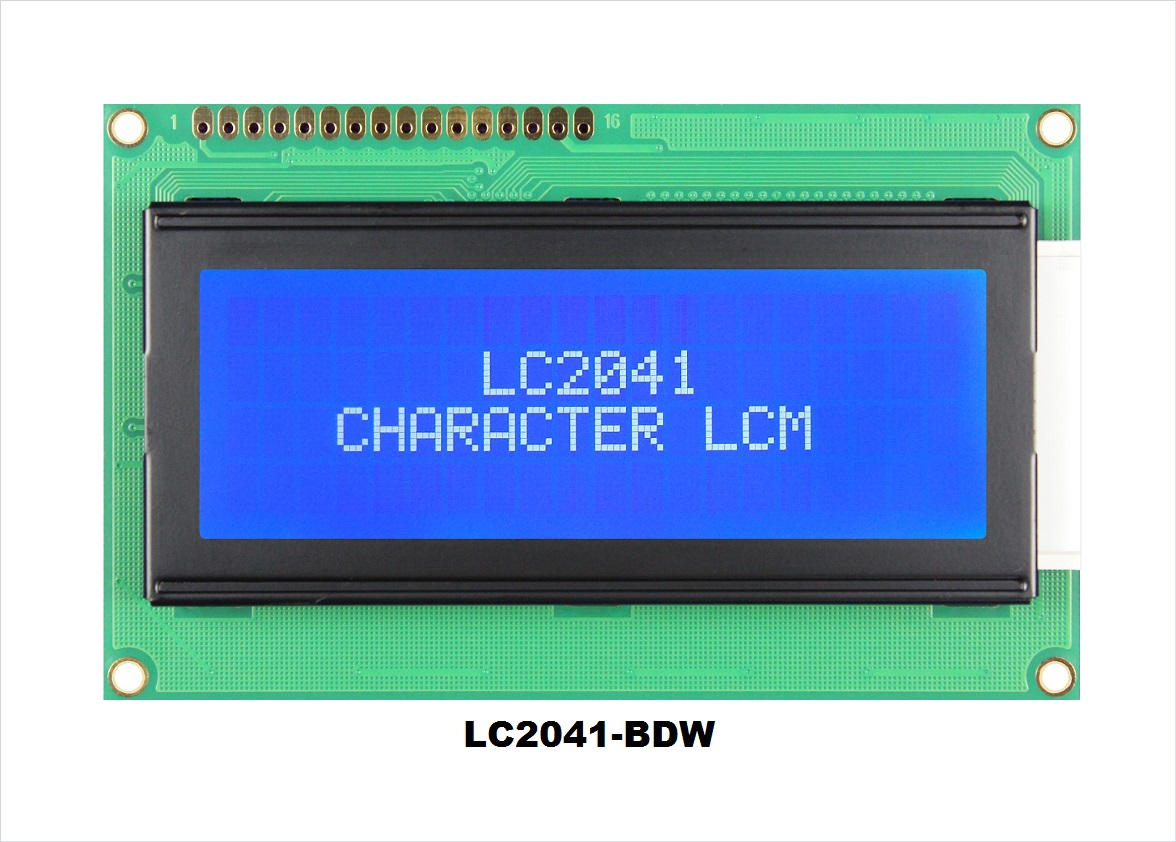

LC2041-DW | 98.0x60.0x13.5 | 76.0x26.0 | 2.95x4.75 | 0.55x0.55 | LED白光 | 4/8-BIT 6800 | 5 | SPLC780D1 |
| 20x4 |  |

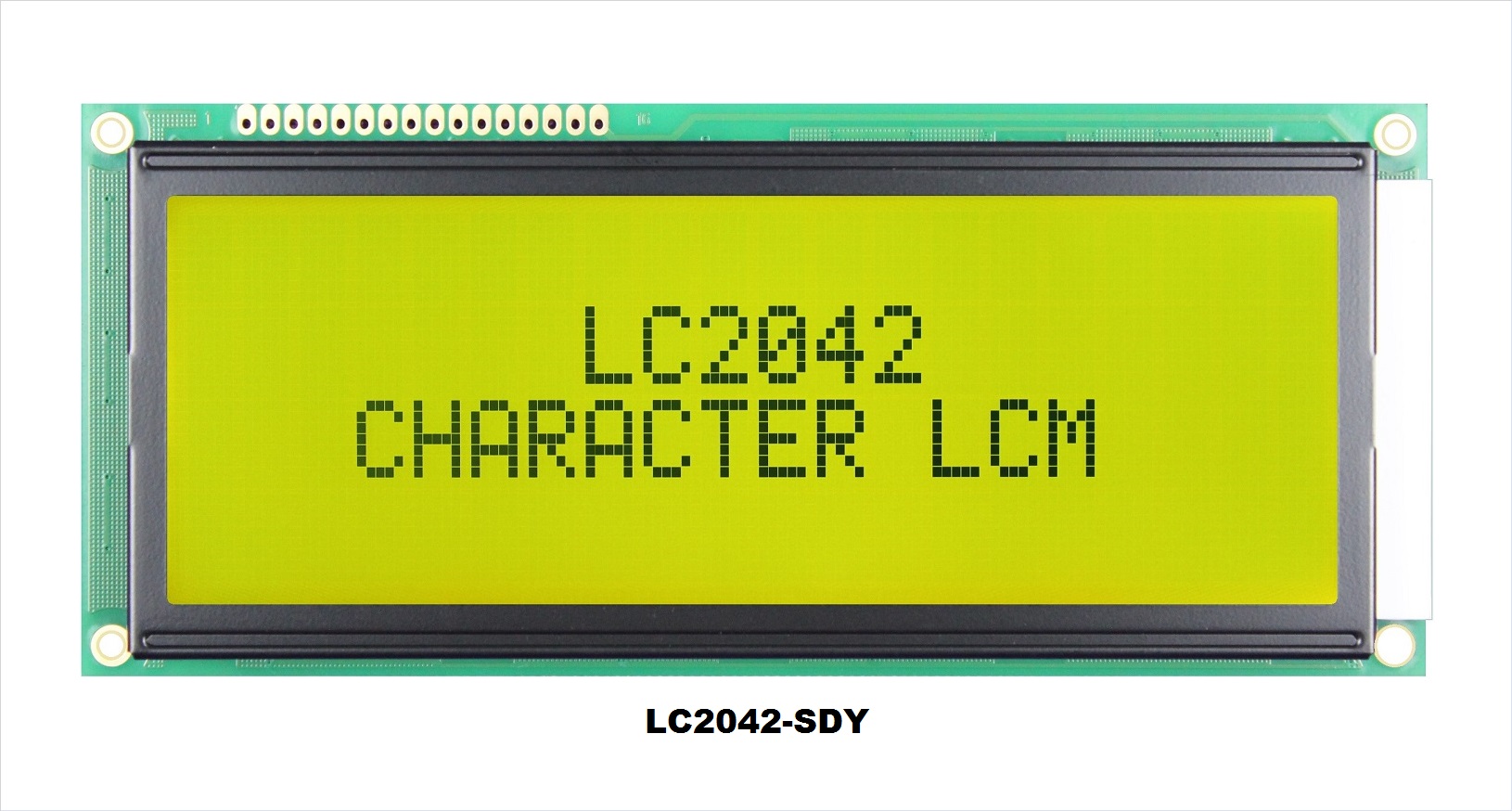

LC2042-DY | 146.0x62.5x14.0 | 123.5x43.0 | 4.84x9.22 | 0.92x1.10 | LED黃綠 | 4/8-BIT 6800 | 5 | SPLC780D1 |
| 20x4 |  |

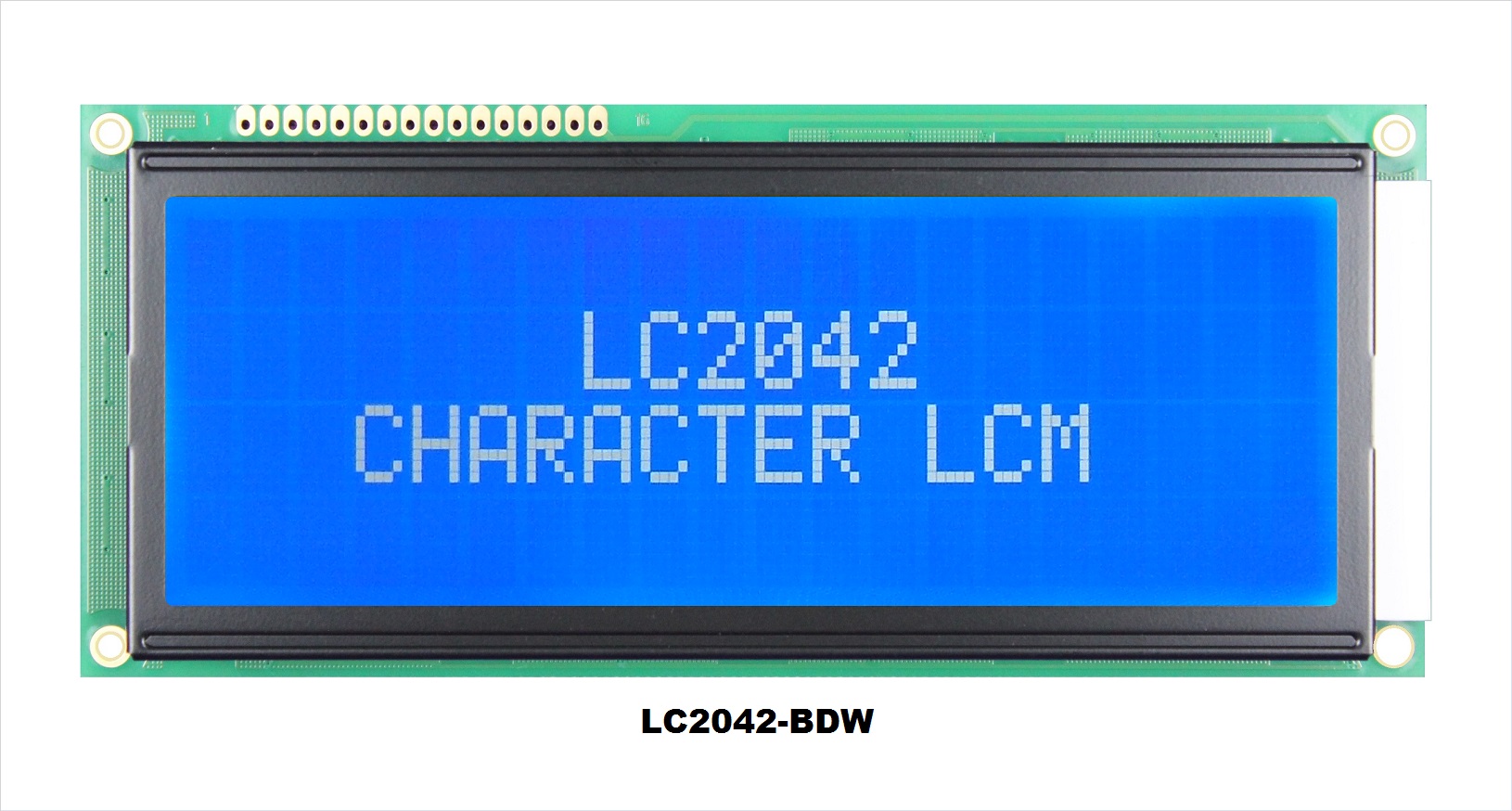

LC2042-DW | 146.0x62.5x14.0 | 123.5x43.0 | 4.84x9.22 | 0.92x1.10 | LED白光 | 4/8-BIT 6800 | 5 | SPLC780D1 |
| 20x4 |  |

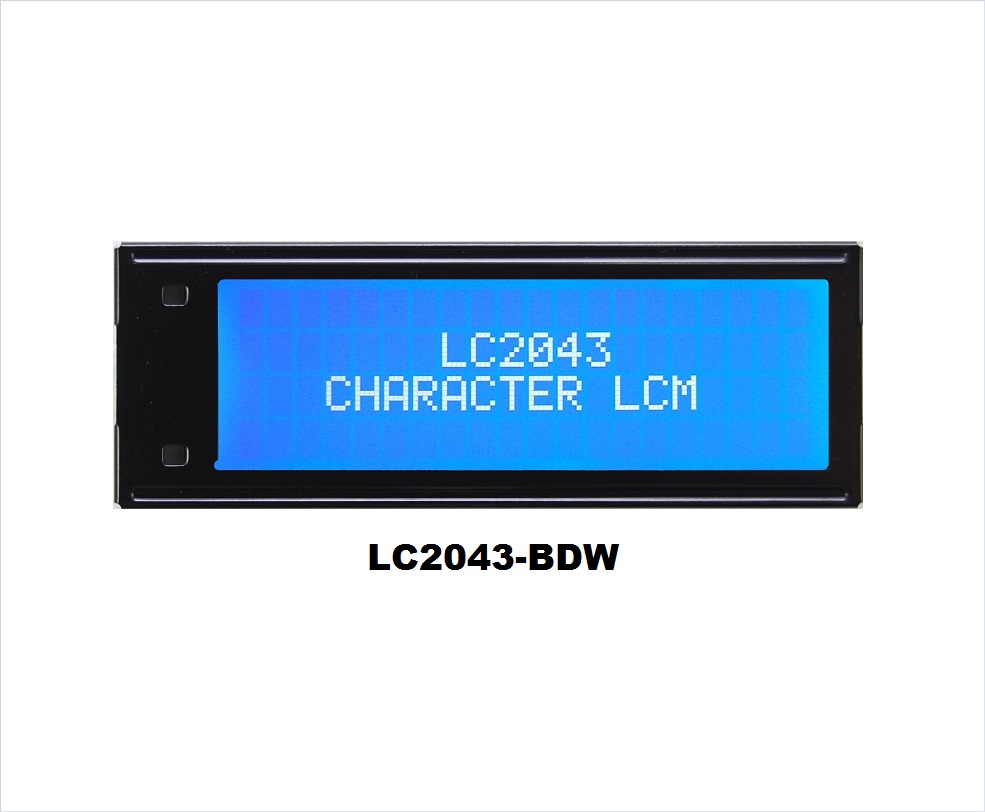

LC2043-DW | 75.0x26.8x14.0 | 61.0x19.0 | 2.32x3.73 | 0.44x0.44 | LED白光 | 4/8-BIT 6800, SPI | 3.3-5 | S6A0073 |
| 24x2 |  |

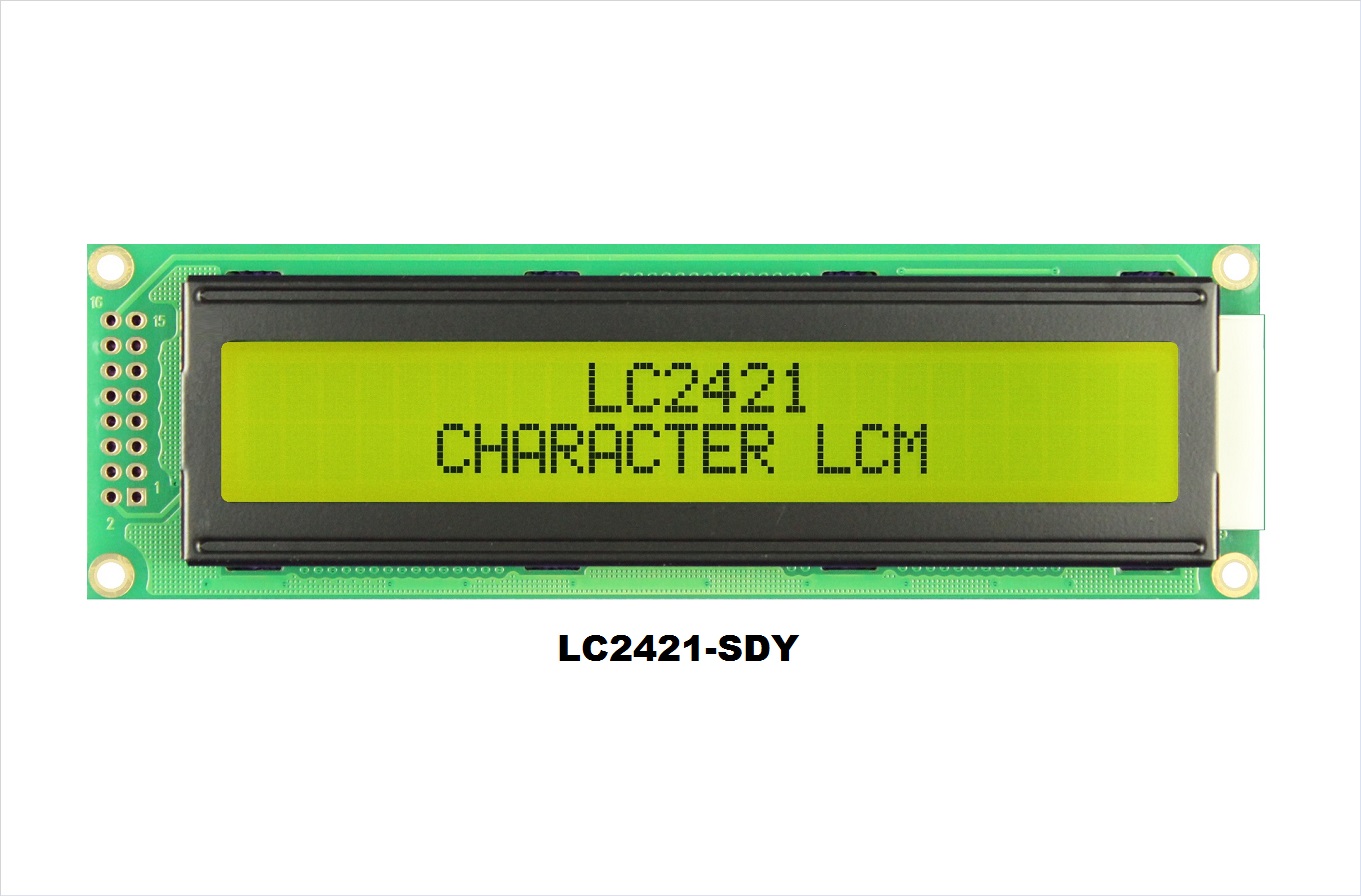

LC2421-DY | 118.0x36.0x14.0 | 93.5x15.8 | 3.20x5.55 | 0.60x0.65 | LED黃綠 | 4/8-BIT 6800 | 5 | SPLC780D1 |
| 24x2 |  |

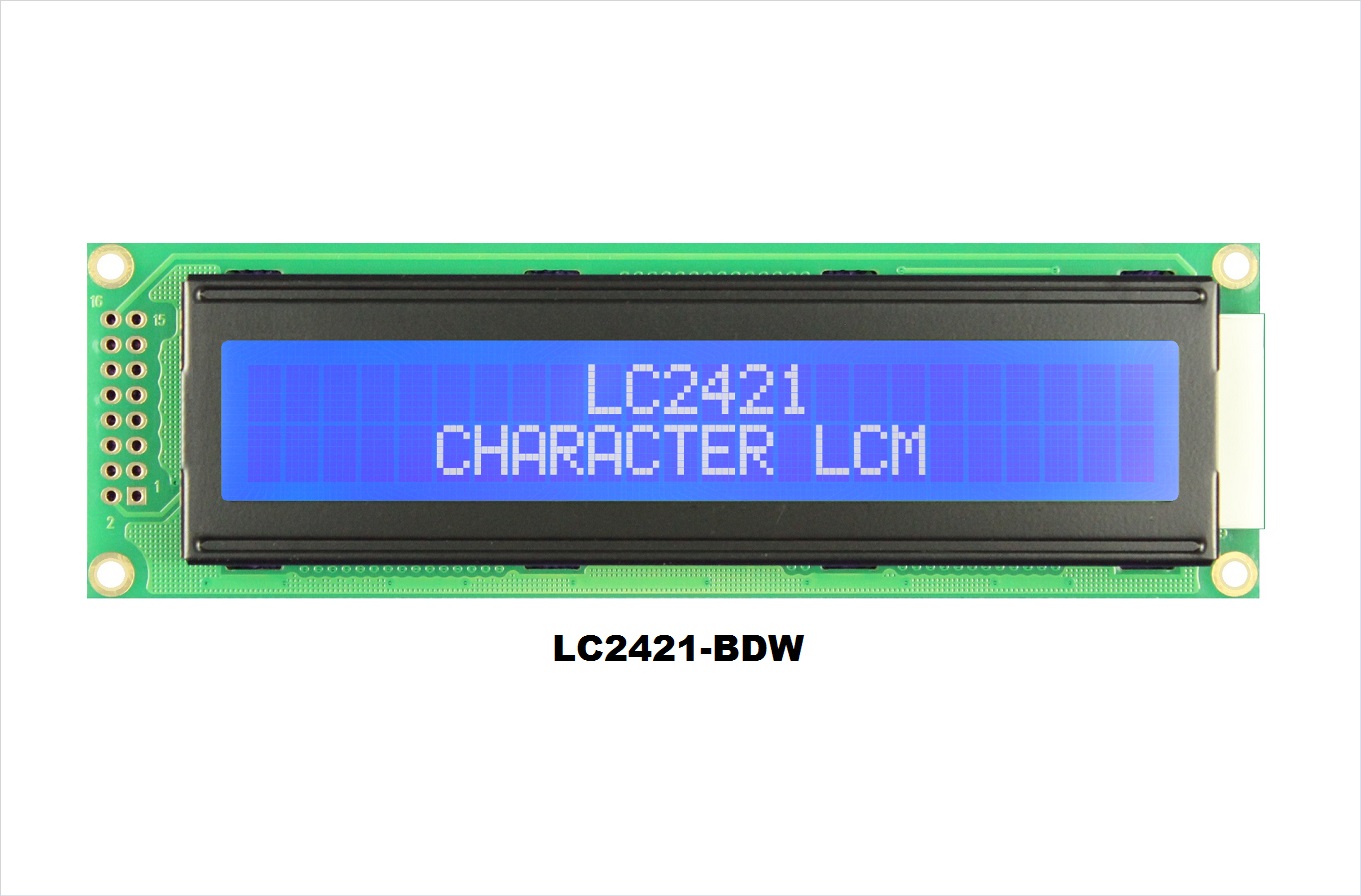

LC2421-DW | 118.0x36.0x14.0 | 93.5x15.8 | 3.20x5.55 | 0.60x0.65 | LED白光 | 4/8-BIT 6800 | 5 | SPLC780D1 |
| 40x2 |  |

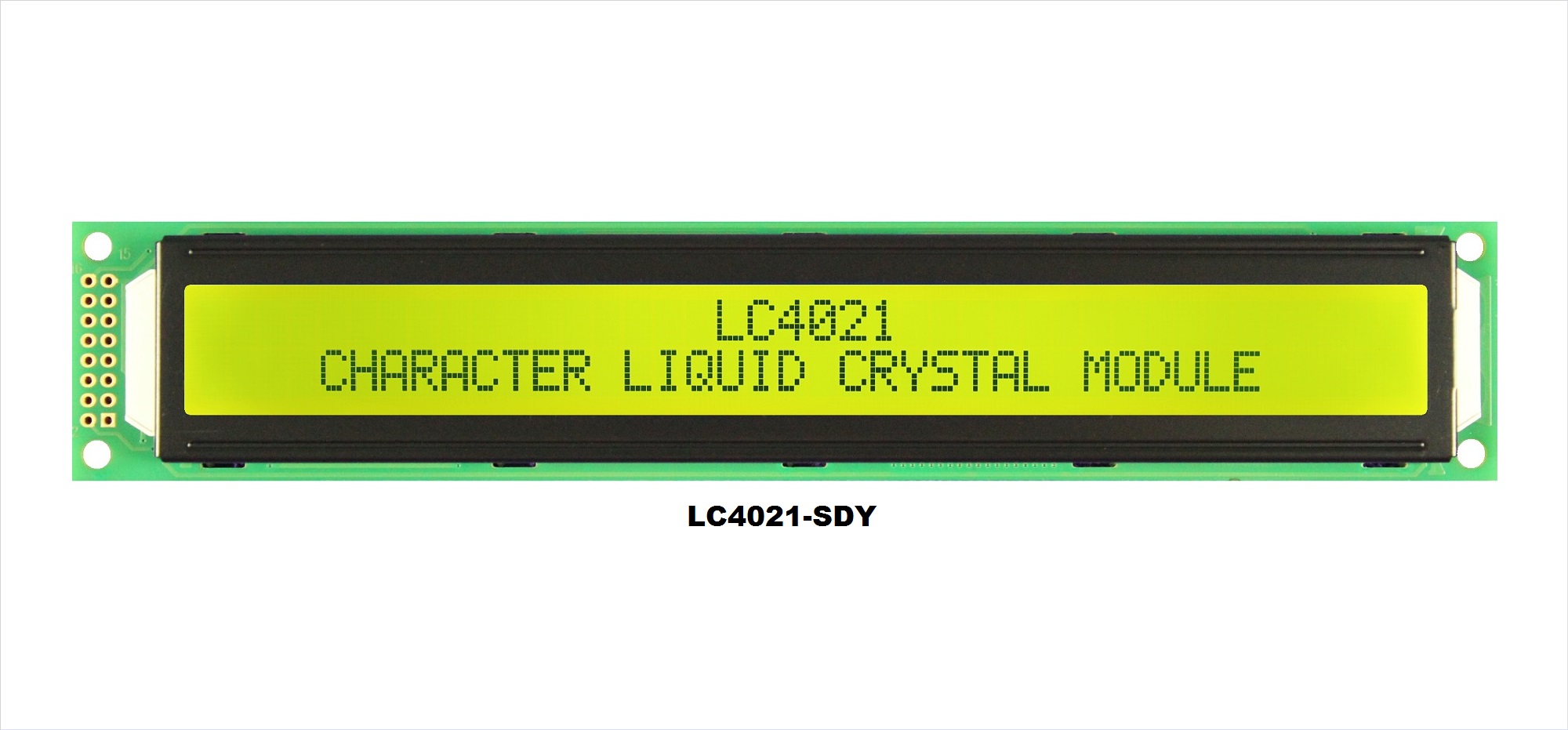

LC4021-DY | 182.0x33.5x14.5 | 155.0x16.0 | 3.20x5.55 | 0.60x0.65 | LED黃綠 | 4/8-BIT 6800 | 5 | SPLC780D1 |
| 40x2 |  |

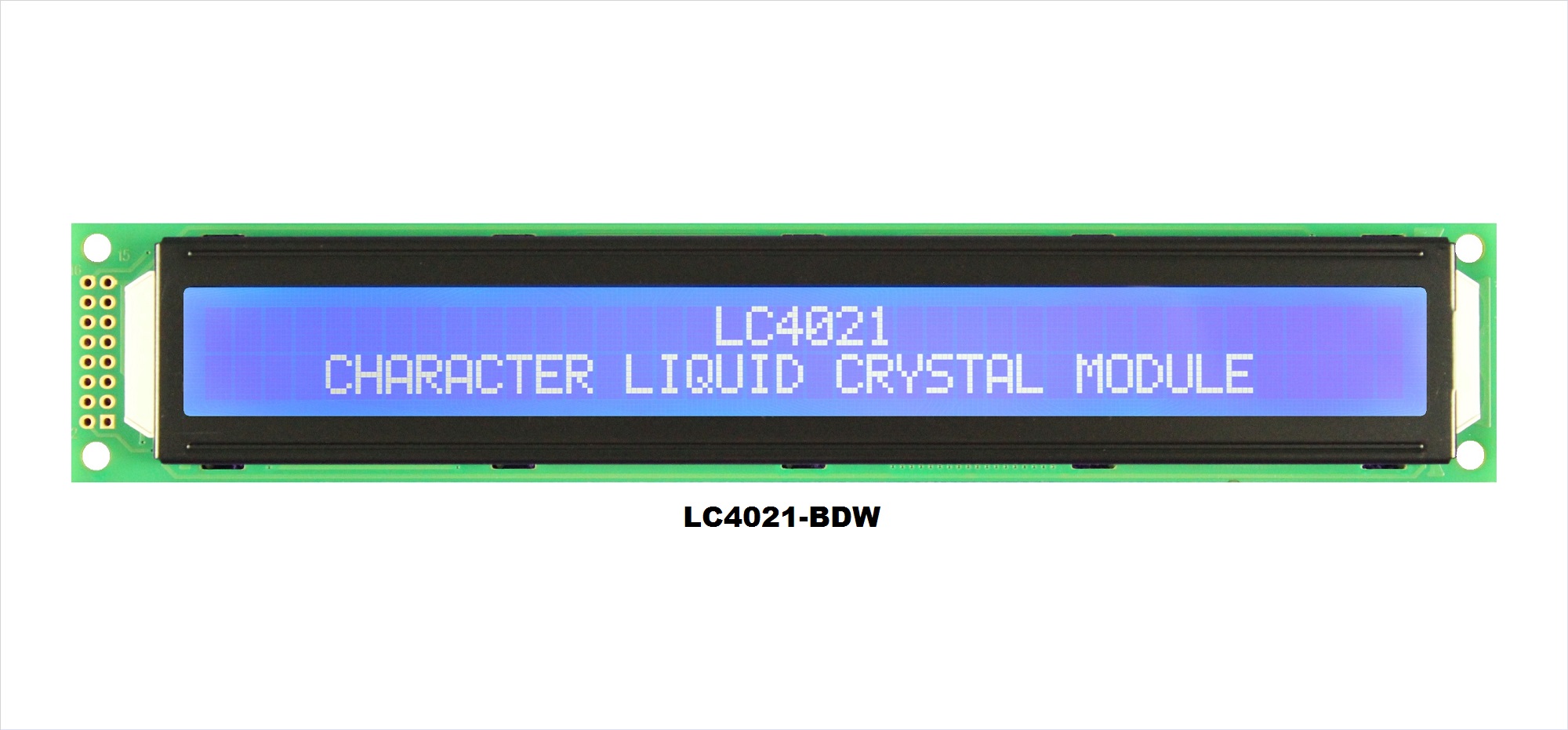

LC4021-DW | 182.0x33.5x13.0 | 155.0x16.0 | 3.20x5.55 | 0.60x0.65 | LED白光 | 4/8-BIT 6800 | 5 | SPLC780D1 |
| 40x4 |  |

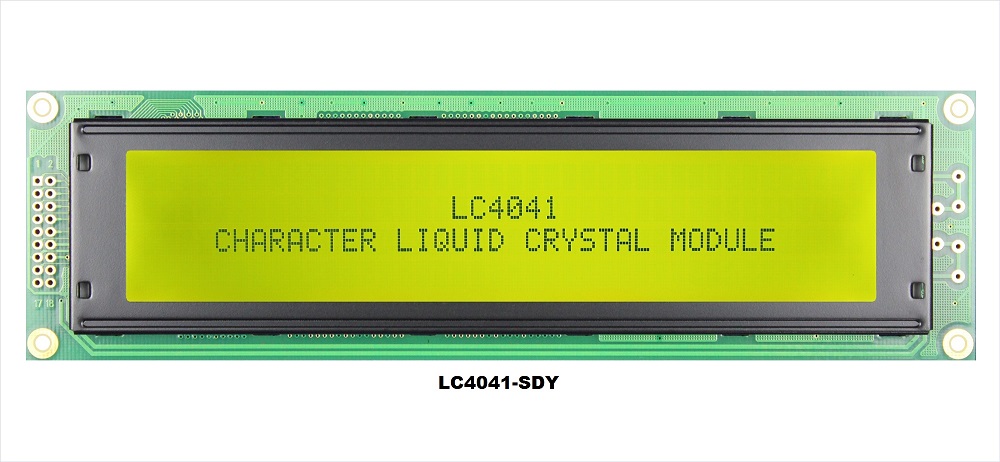

LC4041-DY | 190.0x54.0x14.5 | 147.0x29.5 | 2.78x4.97 | 0.50x0.56 | LED黃綠 | 4/8-BIT 6800 | 5 | SPLC780D1 |
