| 分辨率 | 尺寸 (inch) |
產(chǎn)品圖 | 型 號(hào) | 外形尺寸 WxHxT (mm) |
視域尺寸 WxH (mm) |
字符尺寸/點(diǎn)間距) WxH (mm) |
點(diǎn)尺寸 WxH (mm) |
接口模式 | 電壓 (V) |
控制器 |
|---|---|---|---|---|---|---|---|---|---|---|
| 16x2 | 2.26 |  |

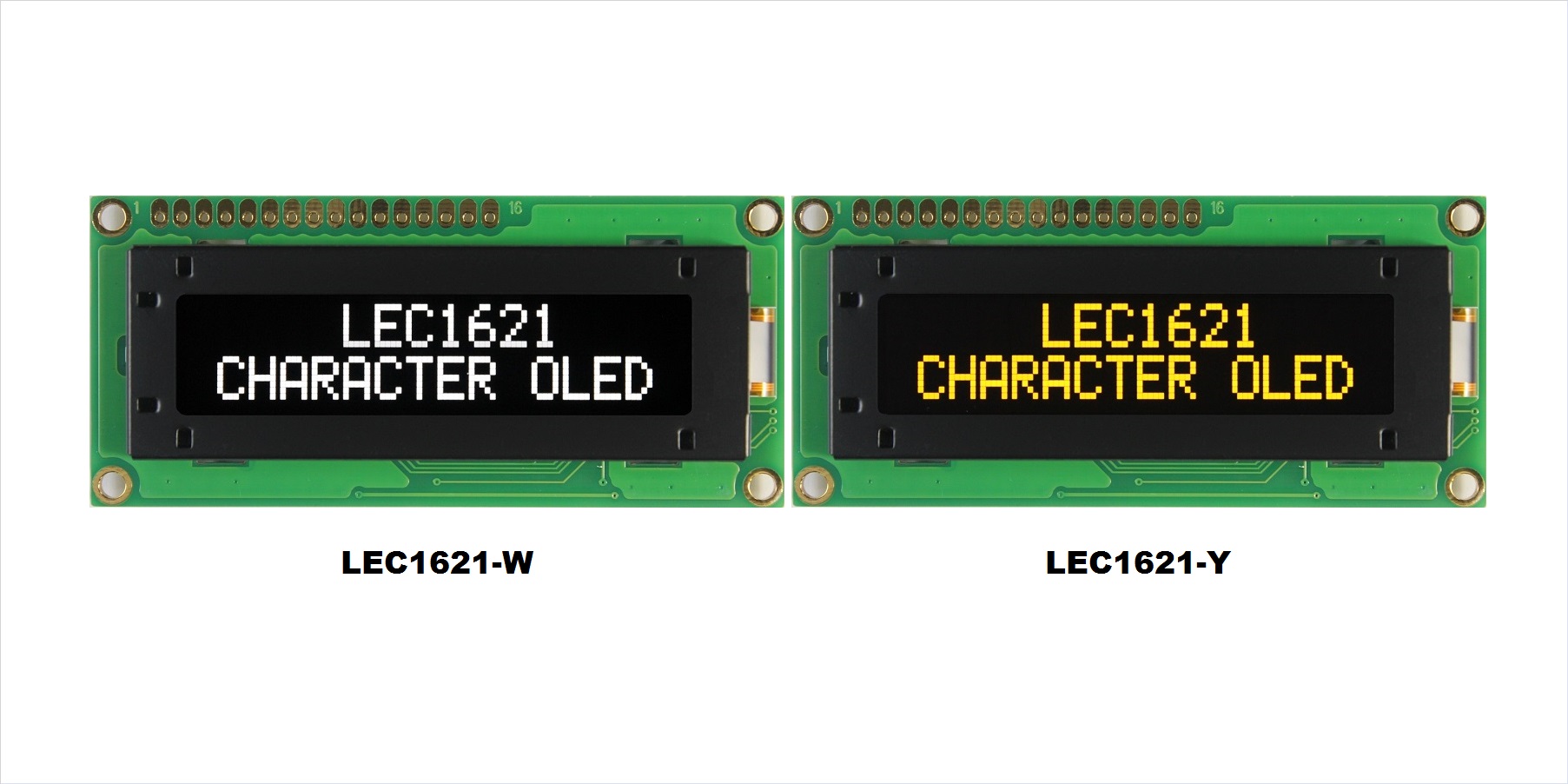

LEC1621-S | 80.0x36.0x9.5 | 58.2x13.5 | 2.97x5.57 | 0.57x0.67 | SPI, I2C | 3.3-5.5 | US2011 |
| 16x2 | 2.26 |  |
LEC1621-P | 80.0x36.0x9.5 | 58.2x13.5 | 2.97x5.57 | 0.57x0.67 | 4/8-BIT 68/80 | 3.3-5.5 | US2011 |
| 20x4 | 2.89 |  |
LEC2041-S | 98.0x60.0x9.5 | 73.0x24.0 | 2.97x4.77 | 0.57x0.57 | SPI, I2C | 3.3-5.5 | US2011 |
| 20x4 | 2.89 |  |

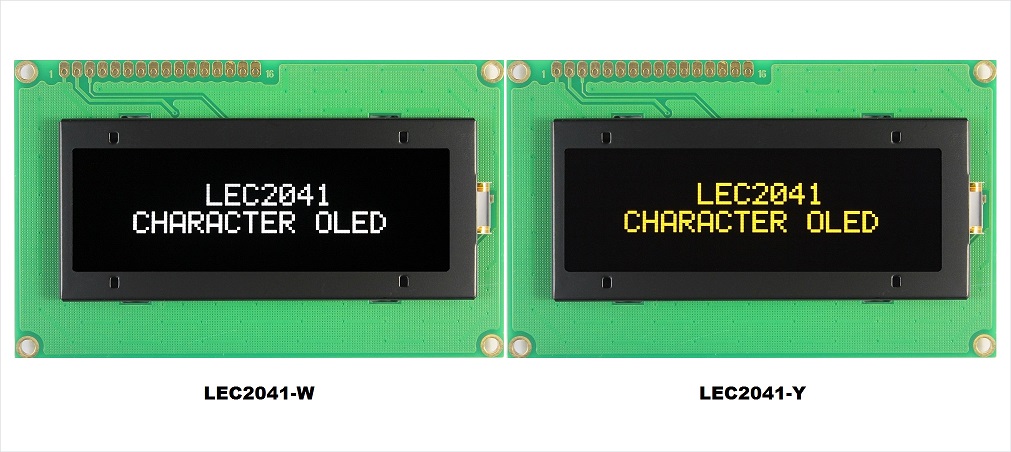

LEC2041-P | 98.0x60.0x9.5 | 73.0x24.0 | 2.97x4.77 | 0.57x0.57 | 4/8-BIT 68/80 | 3.3-5.5 | US2011 |
| 128x64 | 1.54 |  |

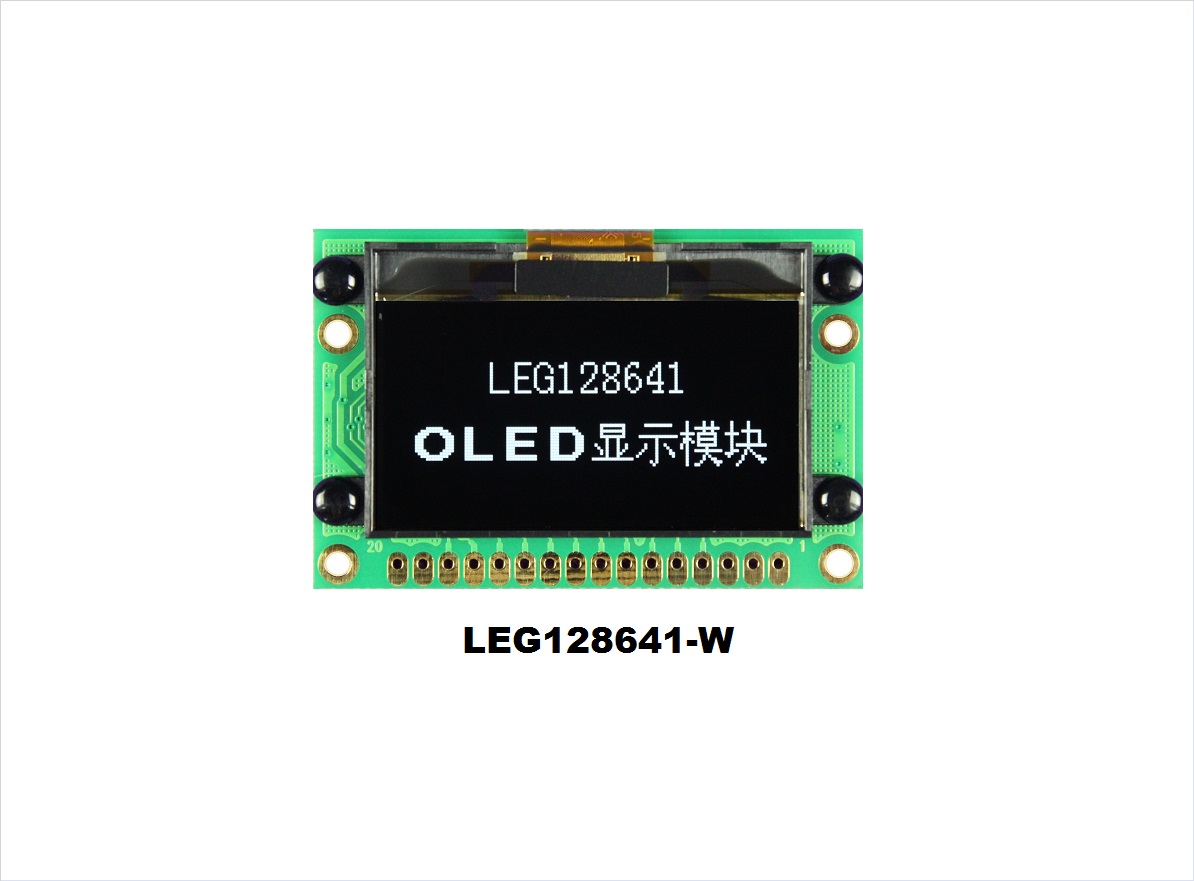

LEG128641 | 55.0x36.0x8.0 | 37.5x19.5 | 0.274x0.274 | 0.254x0.254 | 8-BIT 68/80, SPI, I2C | 3.3 | SSD1309Z |
| 128x64 | 1.54 |  |

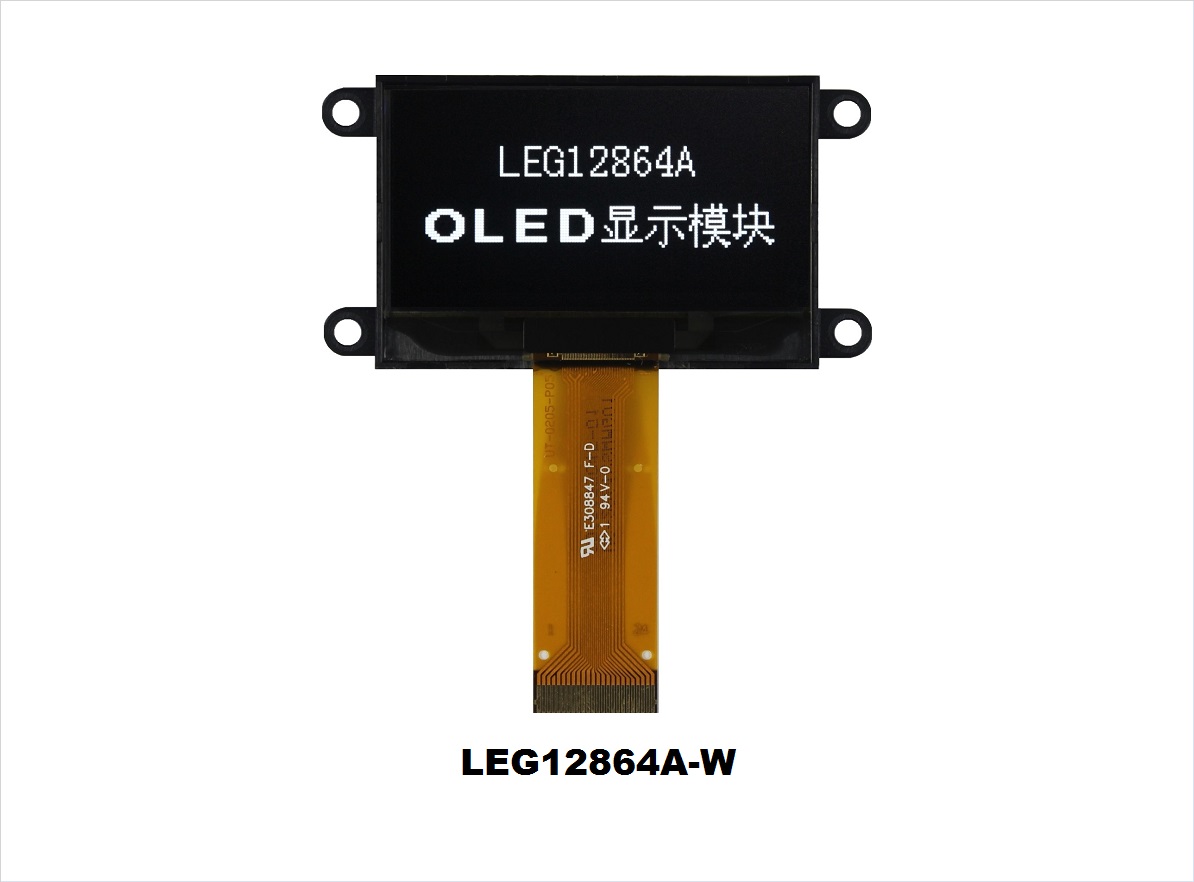

LEG12864A | 55.0x29.2x3.5 | 37.5x19.5 | 0.274x0.274 | 0.254x0.254 | 8-BIT 68/80, SPI, I2C | 3.3 | SSD1309Z |
| 128x64 | 2.42 |  |

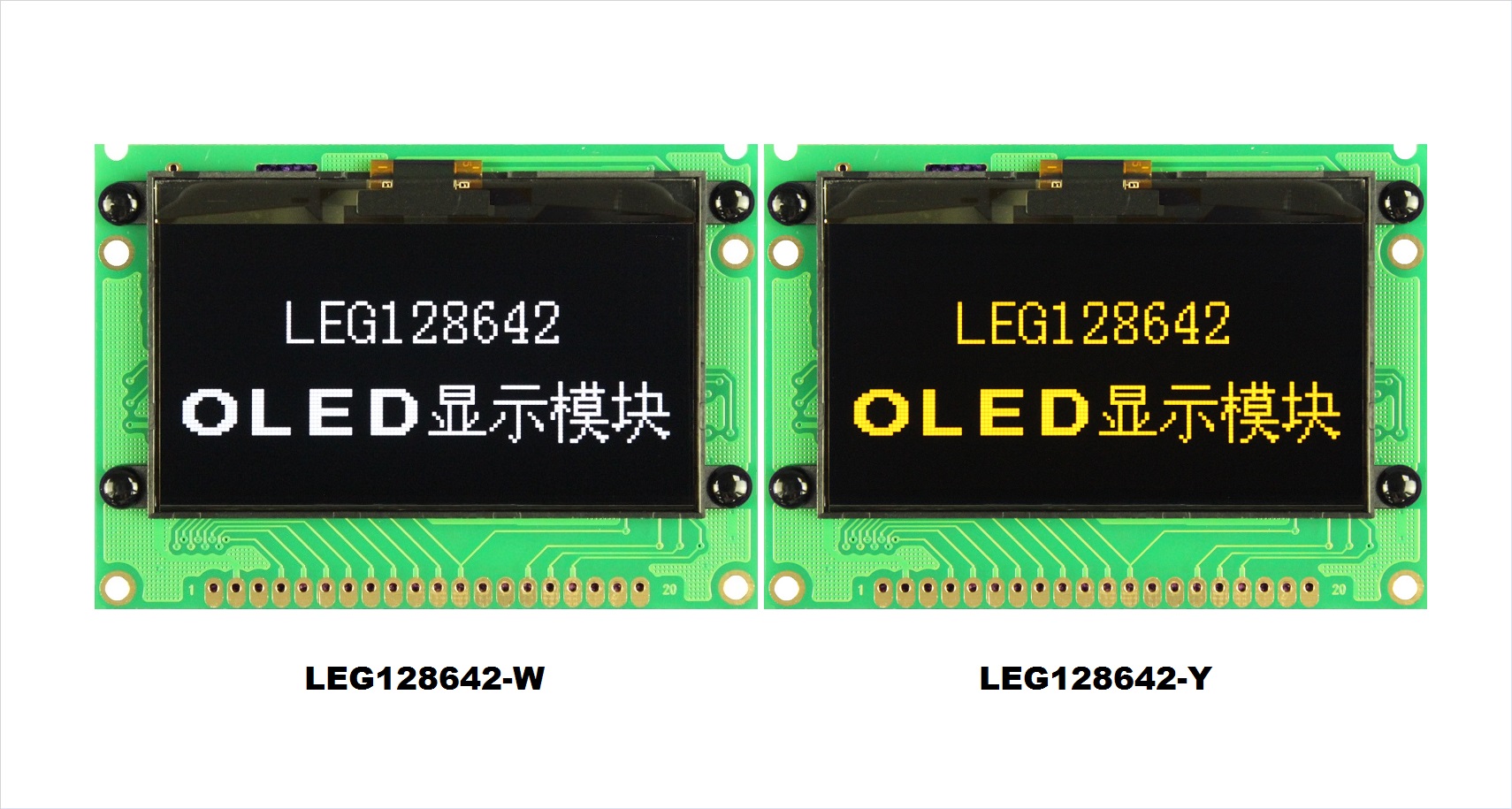

LEG128642-3.3V | 75.0x52.7x8.0 | 57.0x29.5 | 0.43x0.43 | 0.40x0.40 | 8-BIT 68/80, SPI, I2C | 3.3 | SSD1309Z |
| 128x64 | 2.42 |  |
LEG128642-5V | 75.0x52.7x8.0 | 57.0x29.5 | 0.43x0.43 | 0.40x0.40 | 8-BIT 68/80, SPI, I2C | 3.3-5.5 | SSD1309Z |
| 128x64 | 2.42 |  |

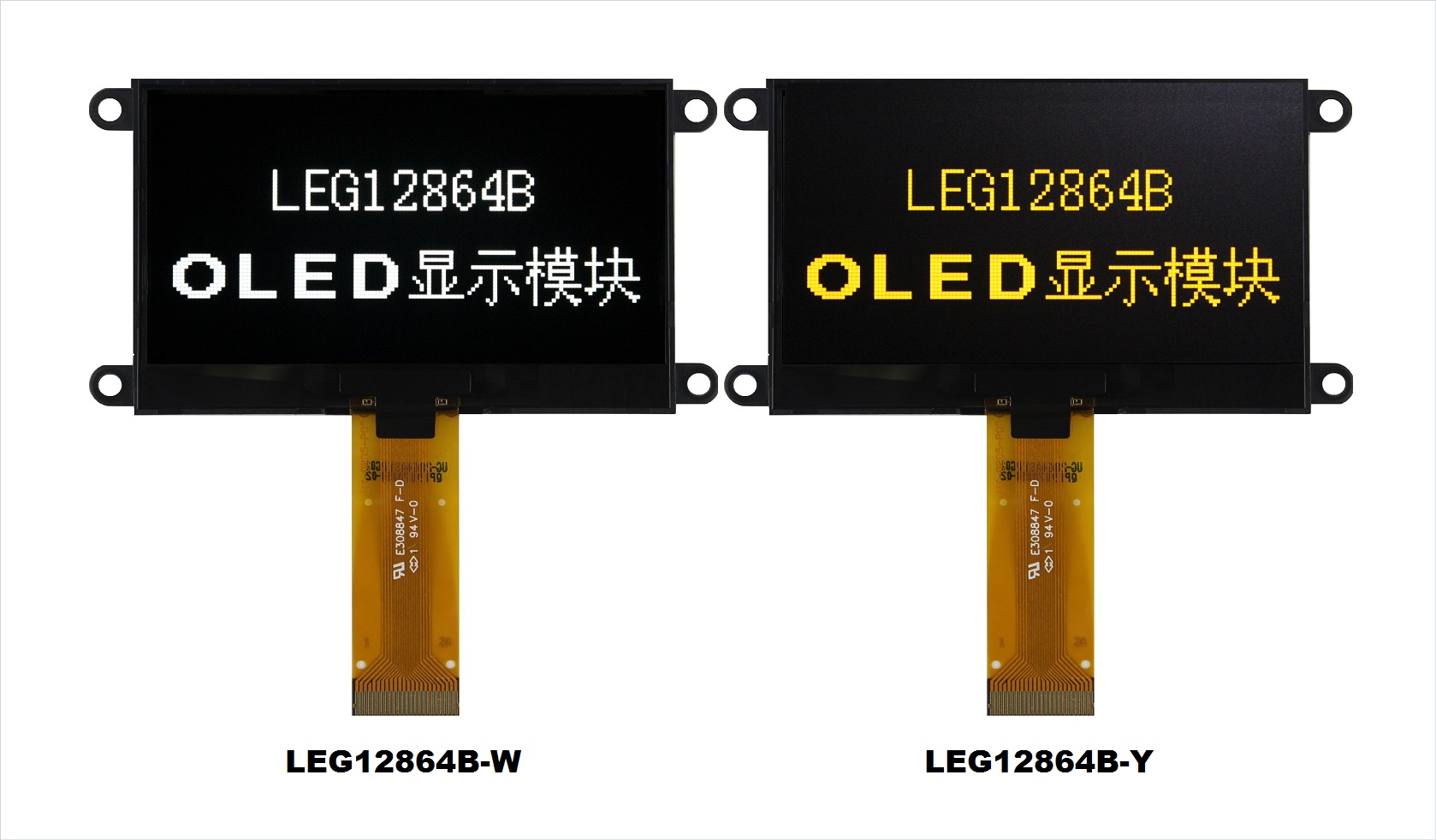

LEG12864B | 73.5x39.0x3.5 | 57.0x29.5 | 0.43x0.43 | 0.40x0.40 | 8-BIT 68/80, SPI, I2C | 3.3 | SSD1309Z |
| 128x64 | 2.7 |  |

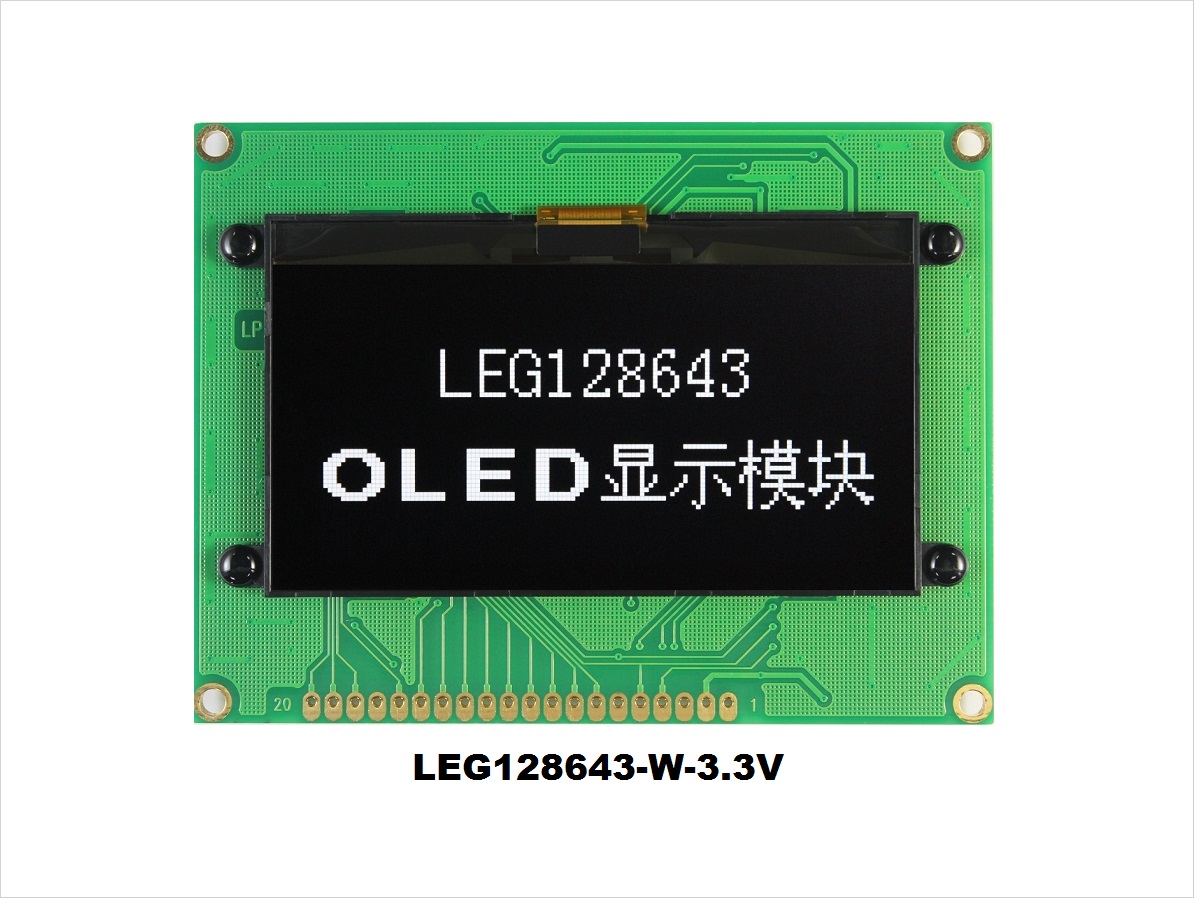

LEG128643-3.3V | 93.0x70.0x8.5 | 63.4x32.7 | 0.48x0.48 | 0.45x0.45 | 8-BIT 68/80, SPI, I2C | 3.3 | SSD1309Z |
| 128x64 | 2.7 |  |

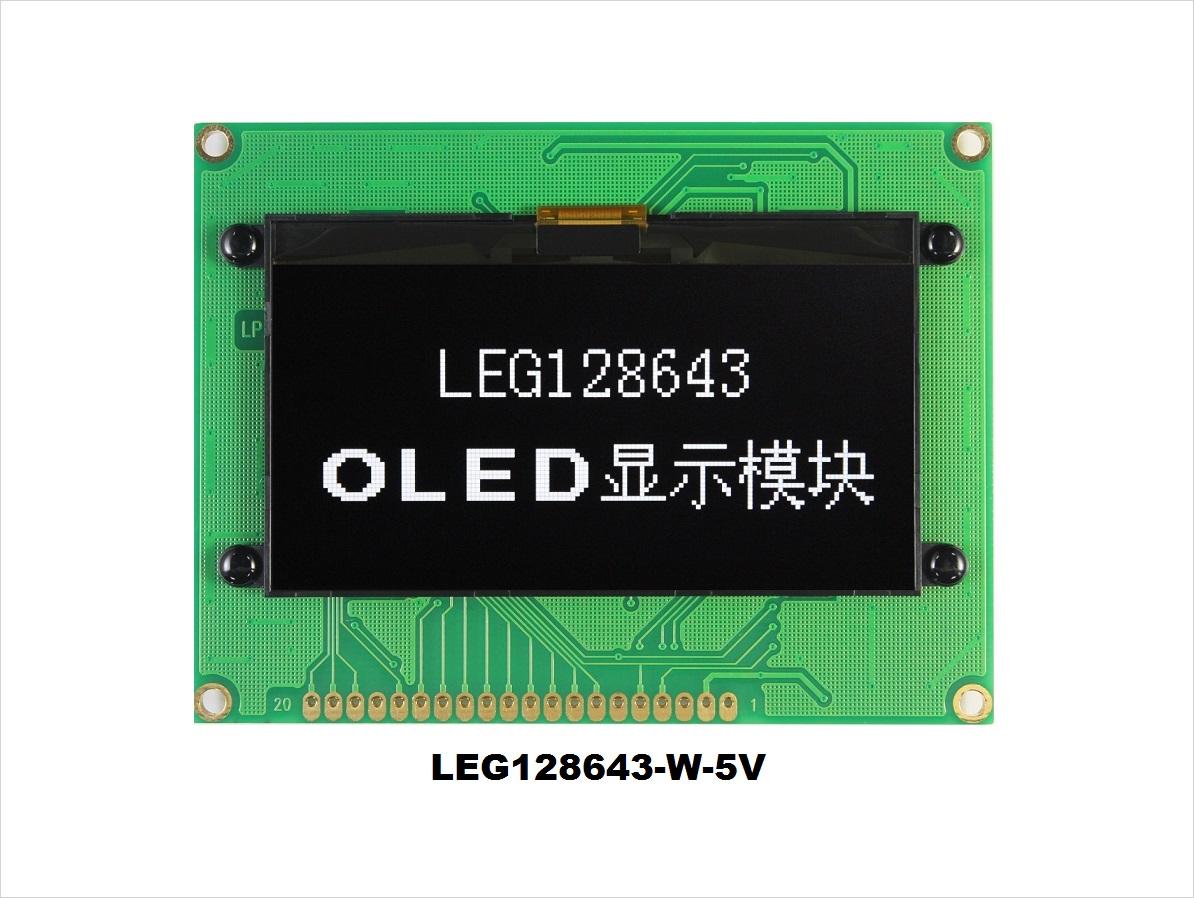

LEG128643-5V | 93.0x70.0x8.5 | 63.4x32.7 | 0.48x0.48 | 0.45x0.45 | 8-BIT 68/80, SPI, I2C | 3.3-5.5 | SSD1309Z |
| 128x64 | 2.7 |  |

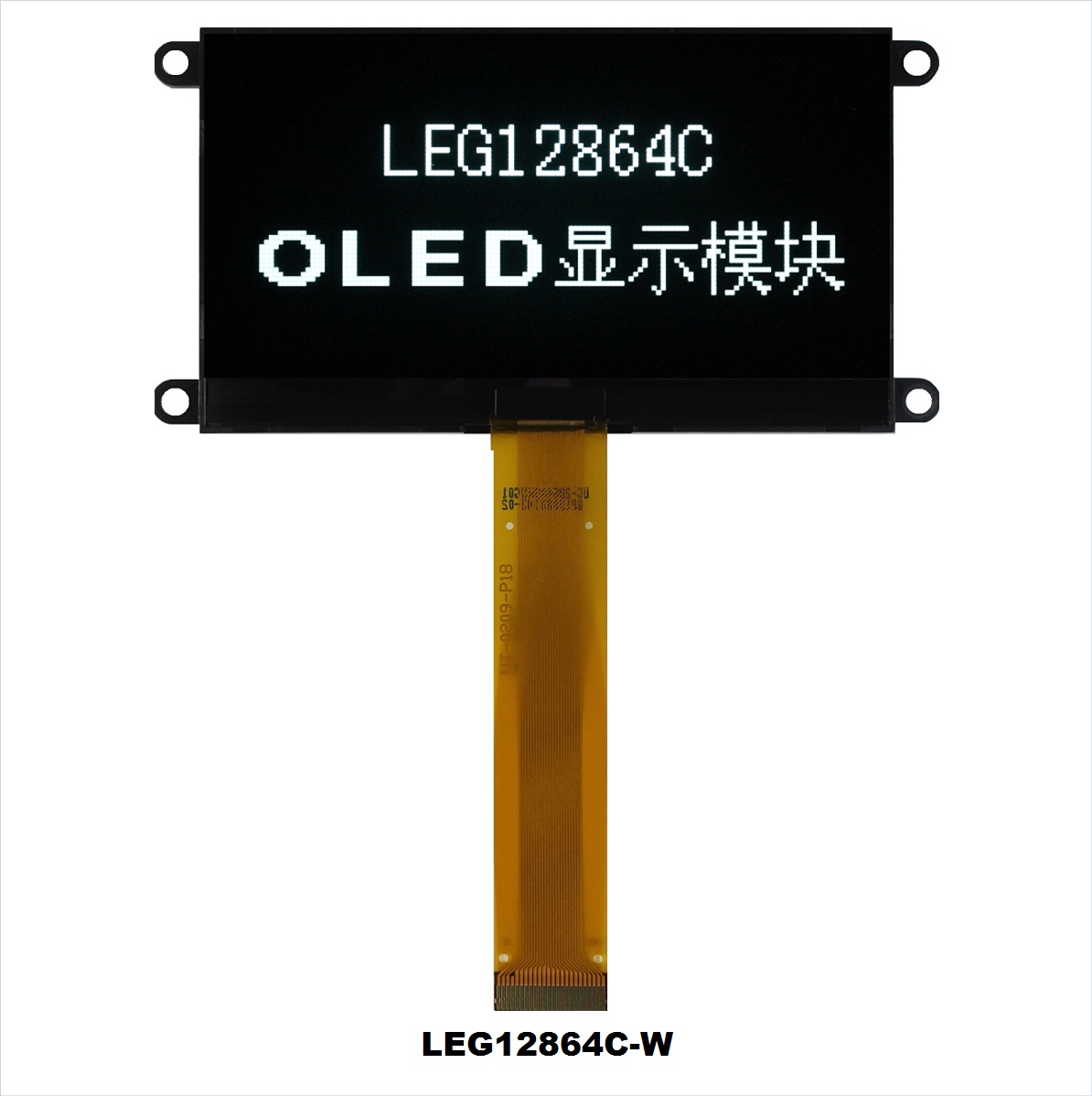

LEG12864C | 86.0x44.0x3.5 | 63.4x32.7 | 0.48x0.48 | 0.45x0.45 | 8-BIT 68/80, SPI, I2C | 3.3 | SSD1309Z |
